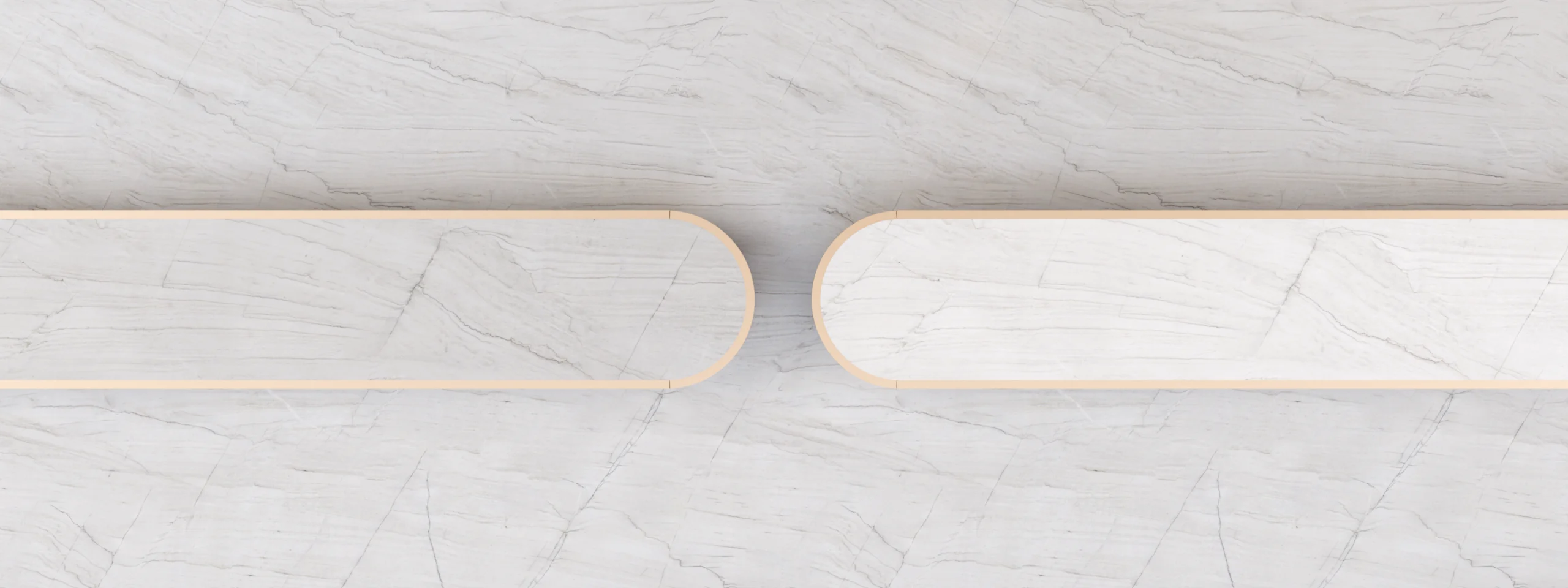

Disco-rectangle Linear Drain
Disco-rectangle
[DIS-koh REK-tang-gul] (noun)
A two-dimensional geometric shape constructed of a
rectangle with semicircles at a pair of opposite sides.
Disco-rectangle emphasizes a fluid, organic aesthetic with smooth, curved contours. This design moves away from sharp angles while maintaining the structural integrity and performance of the product. Available in 10 designer finishes crafted to match other fixtures in the bathroom, it offers flexible solutions to fit any design. This tile insert drain seamlessly integrates with the surrounding shower or wet room floor for a clean visual that is simultaneously vintage yet modern.
Browse Disco-rectangle linear drains by installation series using the tabs below.
Fixed Length (FX) Series
Fixed Length
FX
Waterproofing
Pre-pitched channel with set length with center outlet location.
Install with standard waterproofing methods.
Available Models

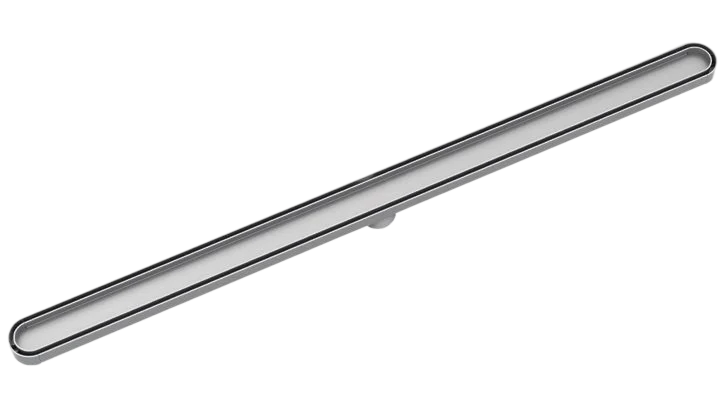

FXDTIF 65
FXDTIF Features
- Fixed Length: Pre-pitched channel with set length with center outlet location
- Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
- 12 gauge, 304 stainless steel tile-in top grate with stainless steel channel
- Accepts flooring material up to 3/8″ in thickness
- Overall width: 2-7/8″, Min. height above waterproofing: 1-11/16″
- Capacity: 9 gallons per minute
- Requires 2″ clamp down floor drain with 2″ throat (strainer size). Not included in complete kit.
Available in:
24″, 36″ and 48″ stock kit lengths
Fixed Flange (FF) Series
Fixed Flange
FF
Waterproofing
Install with liquid or fabric sheet waterproofing methods.
Available Models
FFDTIF 65
FFDTIF 65 Features
- Fixed Flange: Pre-pitched channel with set length with center outlet location
- Waterproofing: Liquid membrane, Fabric sheet
- 12 gauge, 304 stainless steel tile-in top grate with stainless steel channel
- Accepts flooring material up to 3/8″ in thickness
- Finished width: 2″, Min. height above subfloor*: 1-3/16″
- Capacity: 9 gallons per minute
- No-hub connection to waste line with rubber coupling (not included)
- Specialty channel installation options available FCB 65, FCH 65
Available in:
24″, 36″ and 48″ stock kit lengths
Flange with Schluter® Kerdi (FCS) Series
Flange with Schluter® Kerdi
FCS
Waterproofing
Install with Schluter-Kerdi® fabric waterproofing.
Available Models
FCSDTIF 65
FCSDTIF 65 FEATURES
- Fixed Flange: Pre-pitched channel with set length with center outlet location
- Factory applied Schluter° Kerdi Membrane
- 12 gauge, 304L stainless steel tile insert frame with stainless steel channel
- Finished width: 2-9/16″, Min. height above subfloor*: 1-1/16″
- Capacity: 9 gallons per minute
- No-hub connection to waste line with rubber coupling (not included)
Available in:
24″, 36″ and 48″ stock kit lengths
