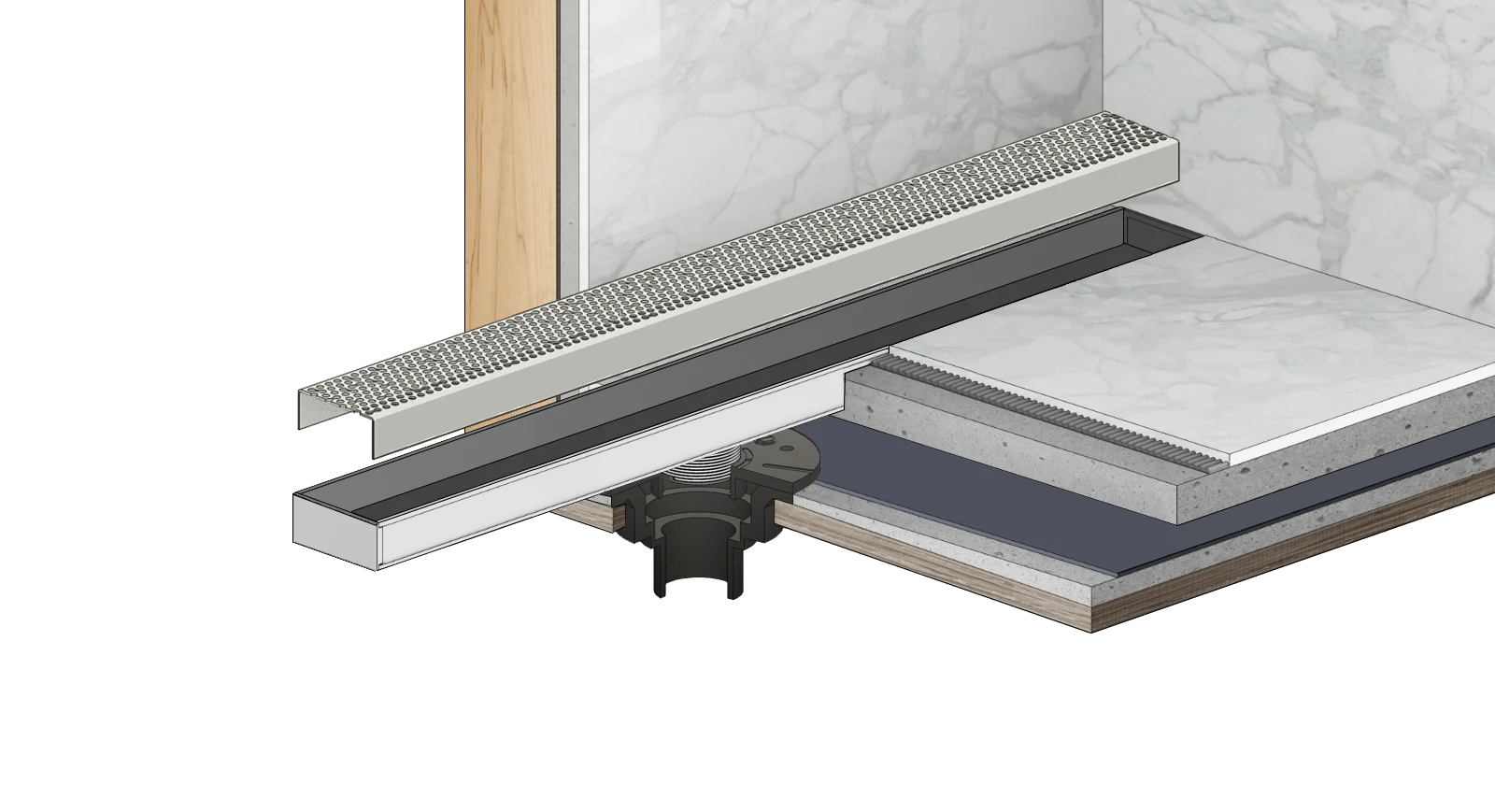

S-LGR 65

Adhesion Stainless Steel Grate Style

Low Profile 1″ Height

Site Sizable: Modify length and locate outlet placement on site

Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass

Overall width: 2-15/16″, Min. height above waterproofing: 1-1/2″

Capacity: 16 gallons per minute per outlet. Additional outlets may be added to increase flow rate.

Requires 2″ clamp down floor drain with 2″ throat (strainer size). Not included in complete kit.

S-LGR 6536: 36″ Complete Kit

S-LGR 6548: 48″ Complete Kit

S-LGR 6560: 60″ Complete Kit

S-LGR 6572: 72″ Complete Kit

S-LGR 6596:  96″ Complete Kit

Satin Stainless — SS

Polished Stainless — PS

Satin Bronze — SB

Oil Rubbed Bronze – ORB

Matte Black — BK

Matte White — MW

Gunmetal — GM

Satin Champagne — SC

Polished Gold — PG

Polished Brass — PB

Satin Brass — SR

• S-LGR 65 Submittal

• Site Sizable – PVC – Installation Instructions

• S-LGR 65 DXF CAD FILE

S Installation – Standard Waterproofing
Standard Wall Conditions
