Custom Solutions
Infinity Drain Custom Solutions support your vision across commercial, residential, and specialty projects. Through our Next Day Custom, Standard Custom, and Custom Custom programs, we partner with architects and designers to modify standard products or develop fully engineered solutions that integrate seamlessly with the design—supported by expert technical guidance from concept through completion.
Custom Fabrication Information
Infinity Drain offers custom fabrication for linear shower drains and architectural drainage systems, allowing projects to meet exact design and installation requirements.
- Linear grates are manufactured 1/8″ shorter than the specified custom length to allow for easy grate removal and maintenance.
- FX Series custom length is measured based on the entire grate and channel assembly.

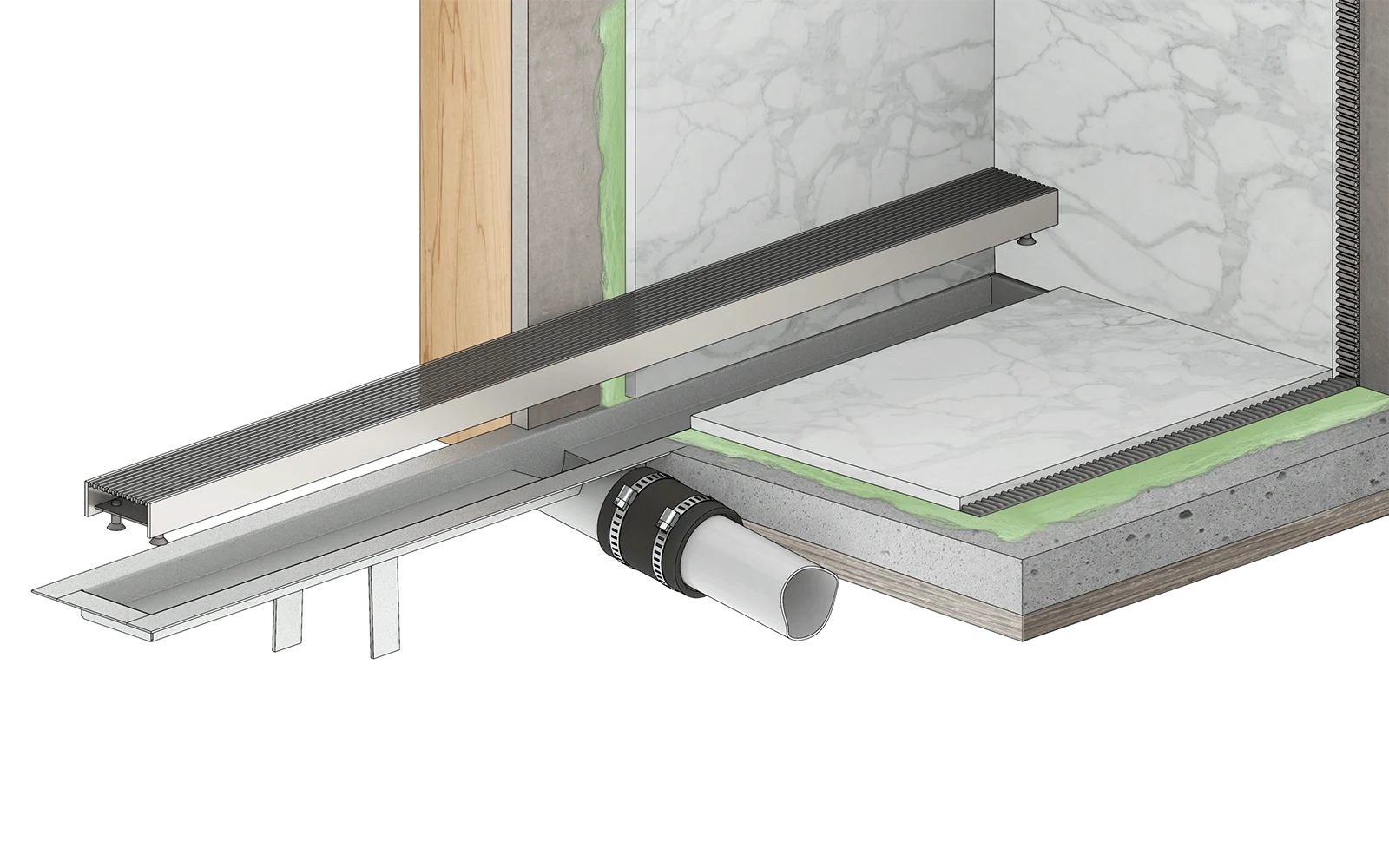

- FF, FT, FCS, and FCB Series custom length is measured based on the inside channel dimension.
- Custom fabricated drains are produced with a ±1/16″ manufacturing tolerance.
- A completed custom fabrication form must accompany the purchase order submitted through an authorized Infinity Drain dealer.
- For custom drain quotations, lead times, and technical drawings, contact:
quotes@infinitydrain.com
Customization Options

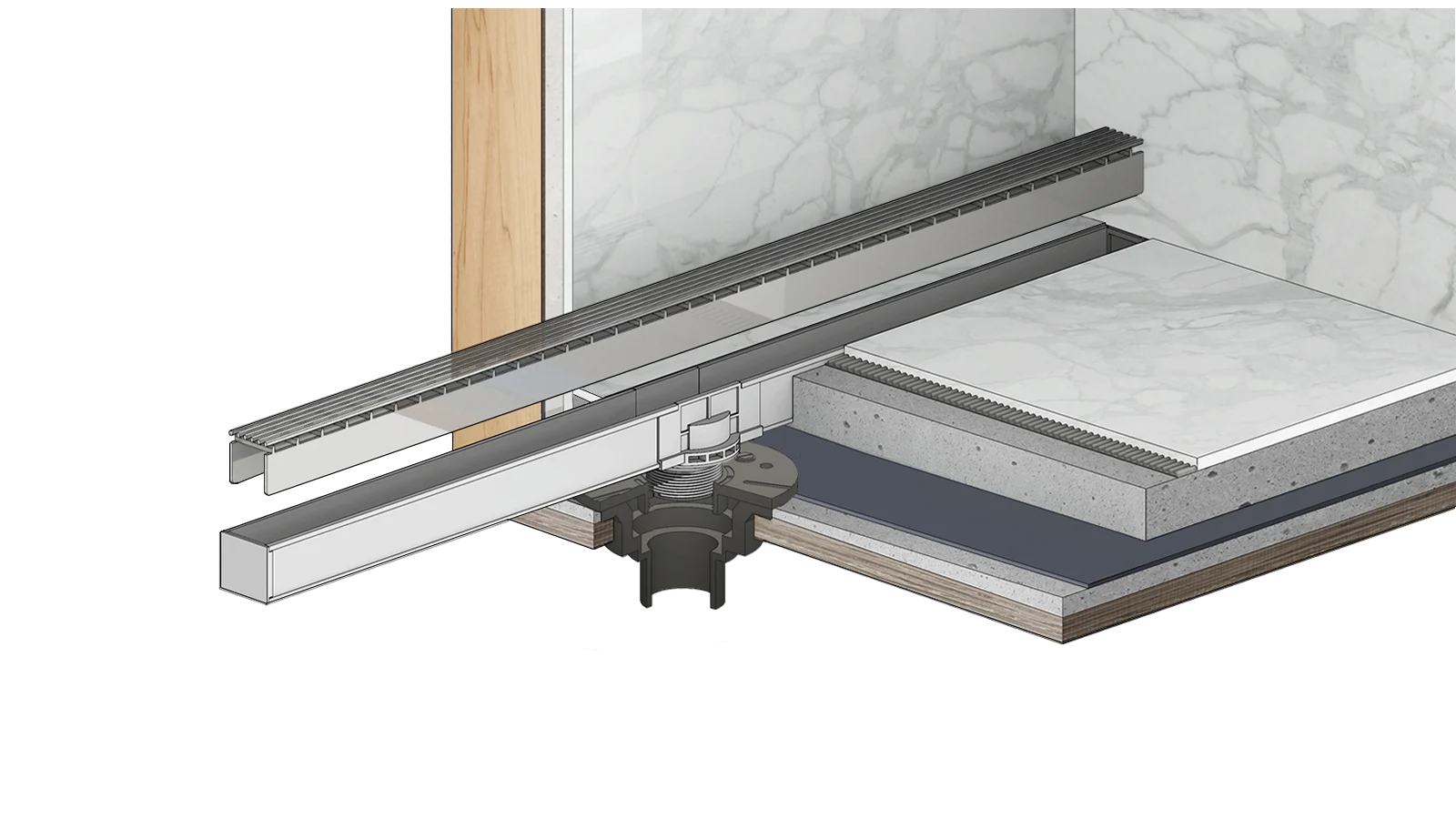

Prepped and Ready: Channel components, including stainless steel channel trim, PVC channel, and PVC outlet sections, are cut to exact size, glued together, and ready for installation.
Custom Fabricated Grate: Each order includes a stainless steel grate customized to match the precise channel dimensions.

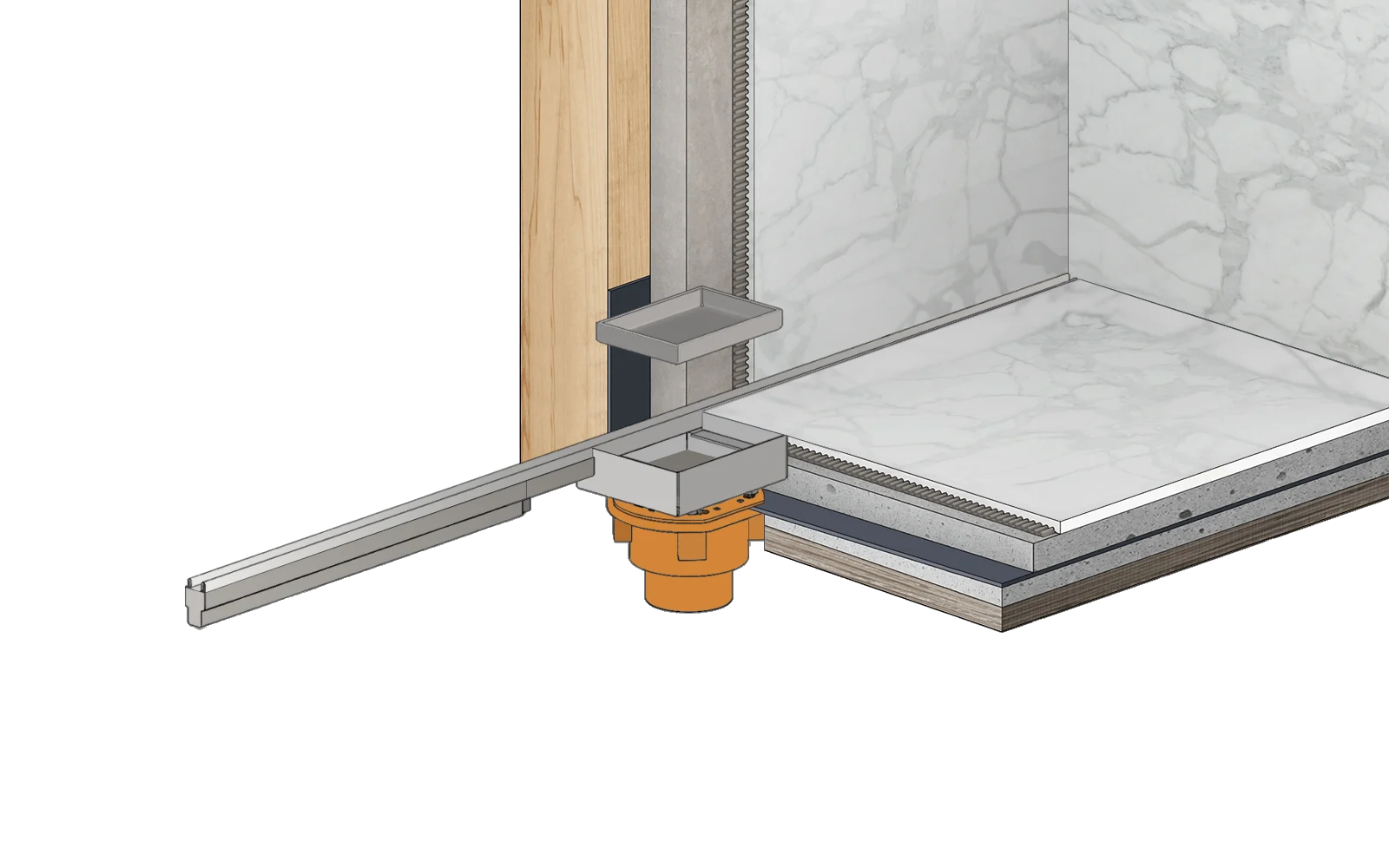

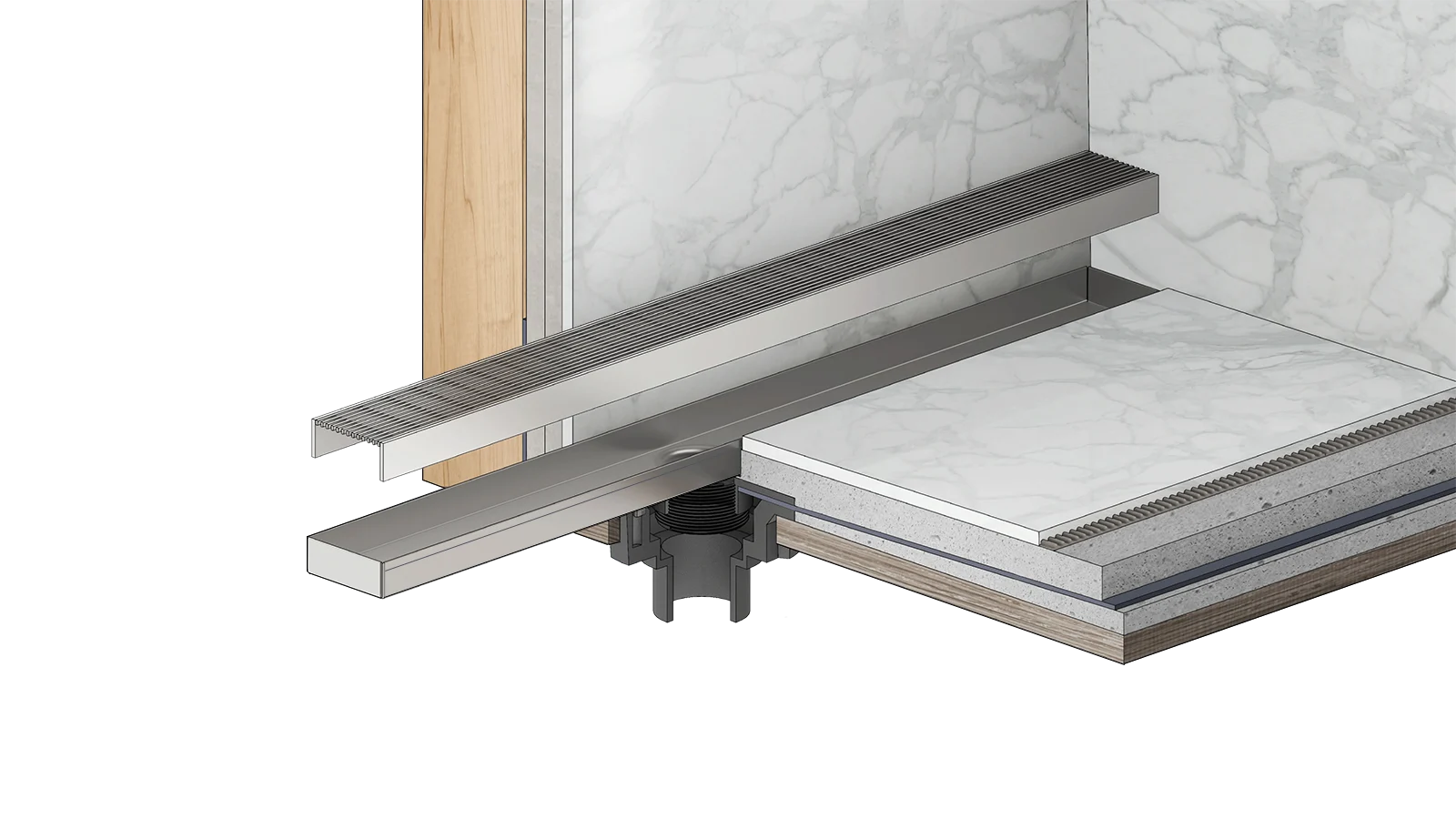

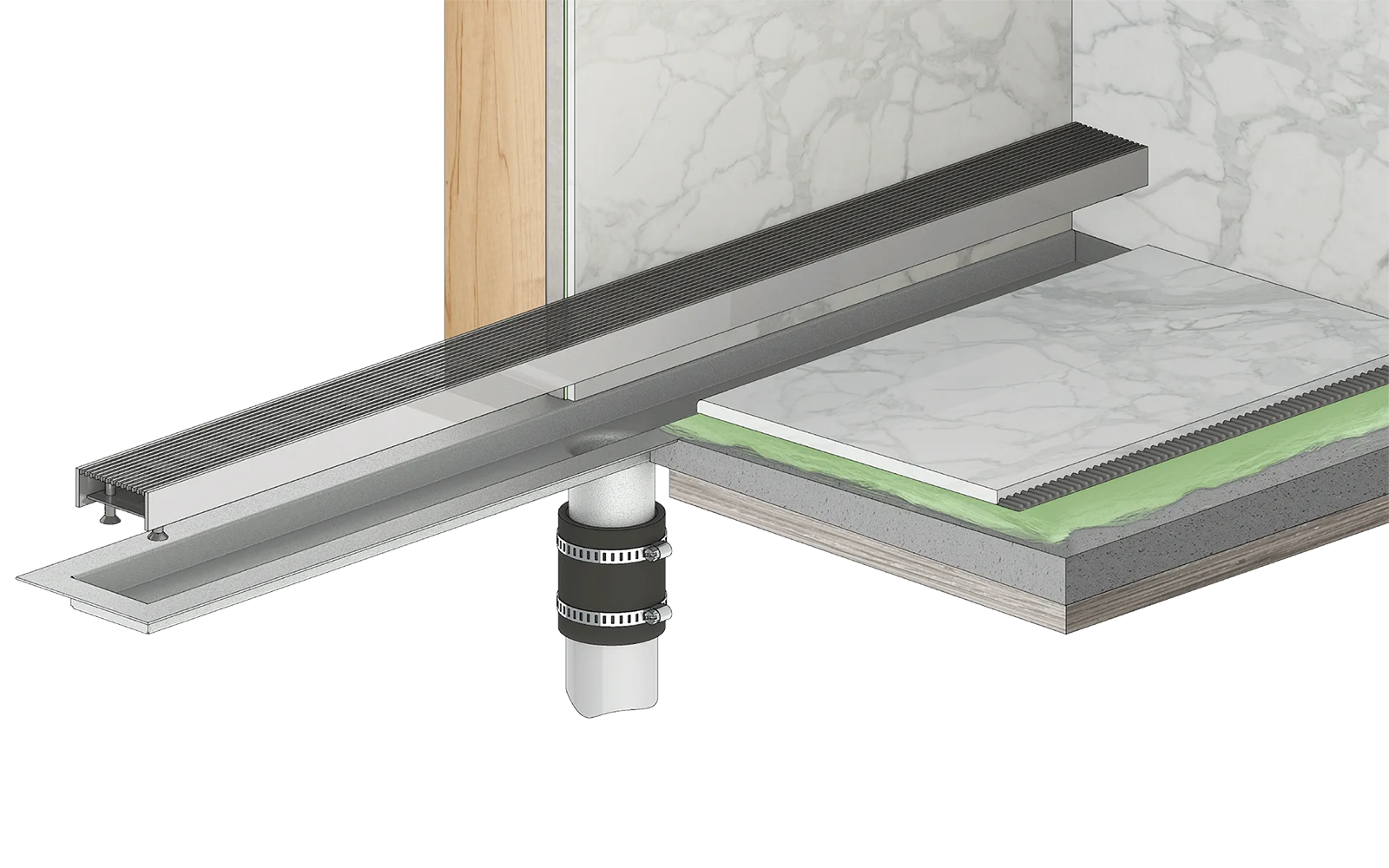

Fixed (FX), Fixed Flange (FF), Flange with Schluter-Kerdi (FCS), and Double Waterproofing (FCB)

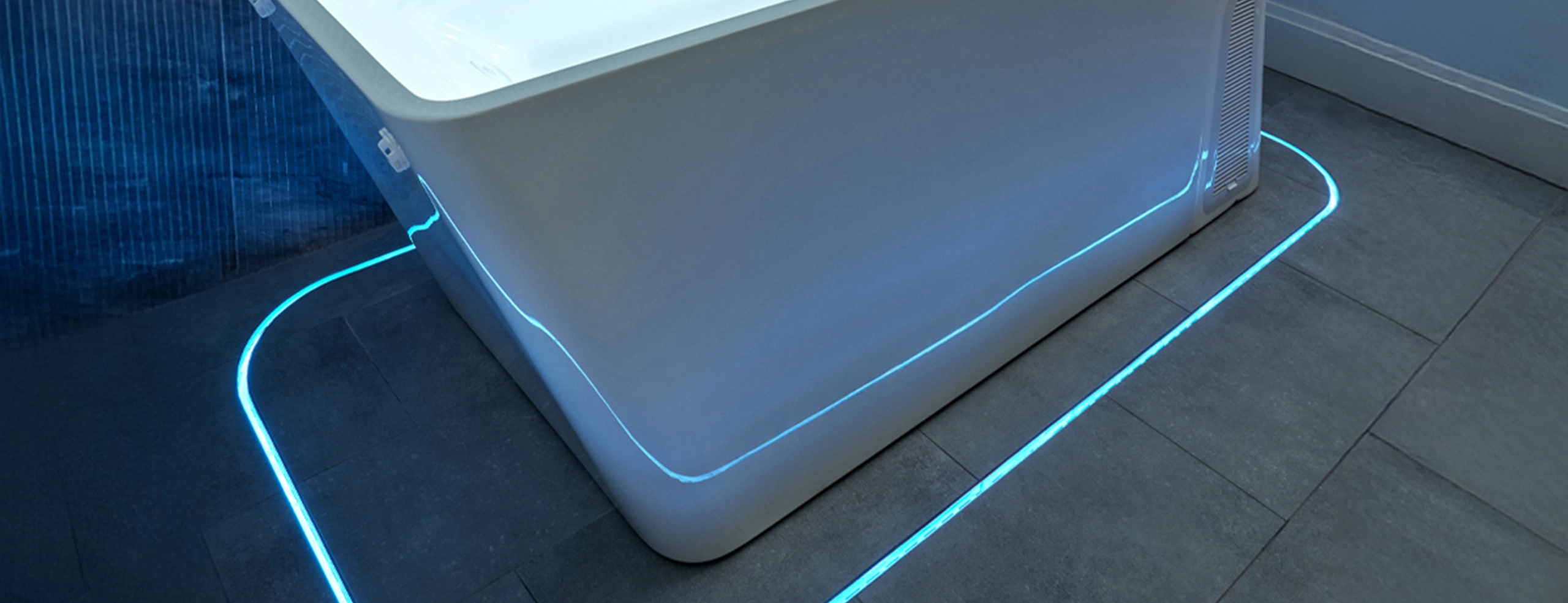

Standard Custom Program
Whether you need one custom drain or hundreds, Infinity Drain fabricates linear shower drains to your exact specifications—from grate style and finish to waterproofing compatibility and outlet placement. Our custom capabilities support architects, designers, contractors, and developers working on residential, hospitality, healthcare, and commercial projects.
- Installation types with any standard grate style options
- Straight configuration and custom lengths up to 96″
- Custom outlet placement for multiple outlets
- Finishes: Satin Stainless, Polished Stainless, Oil Rubbed Bronze, Satin Bronze, Matte Black, Gunmetal, Matte White, Polished Brass, Polished Gold, and Satin Champagne
Customization Options
Custom-Custom Program
Customization Options

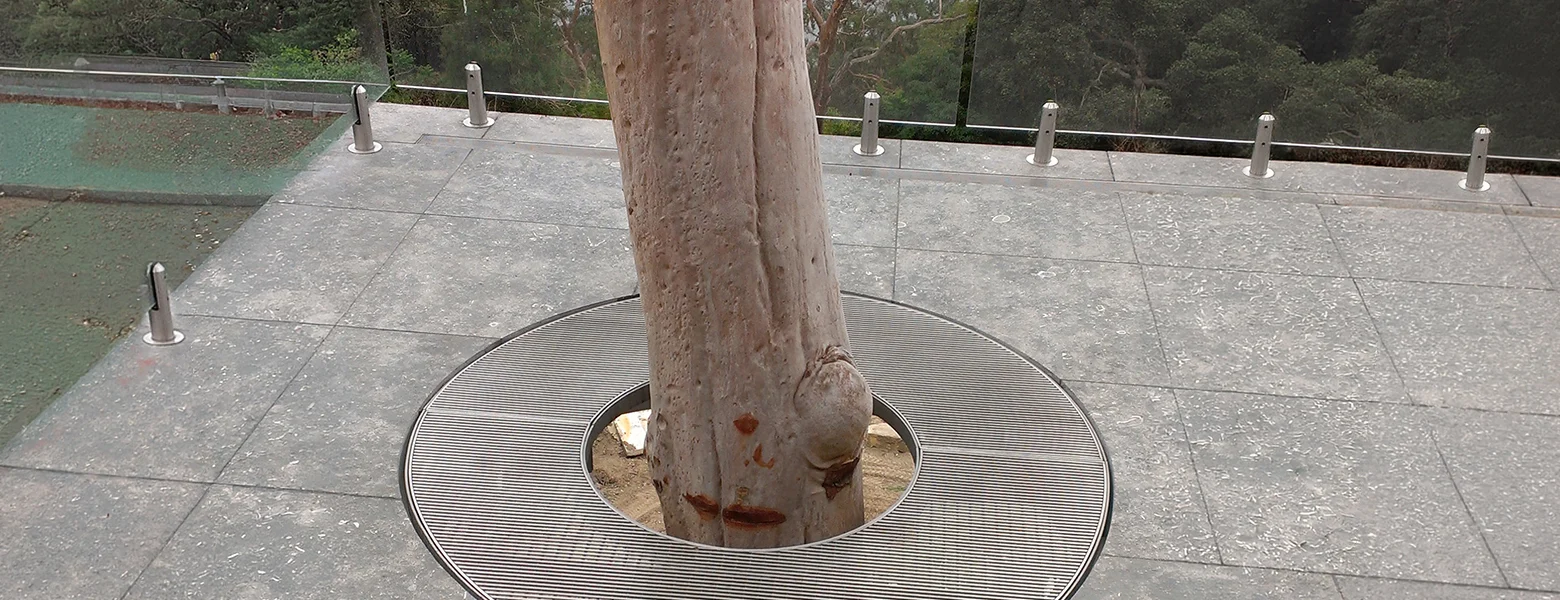

- Specialty installation options (Sink drain, Elevator drain, Threshold drain, Vinyl Clamp drain, etc.)
- Any shape and configuration
- Any installation type
- Any outlet type
- Any finish or specialty material (ex. unlacquered brass)
- Standard finishes and color match finish options available
- Length up to 300″

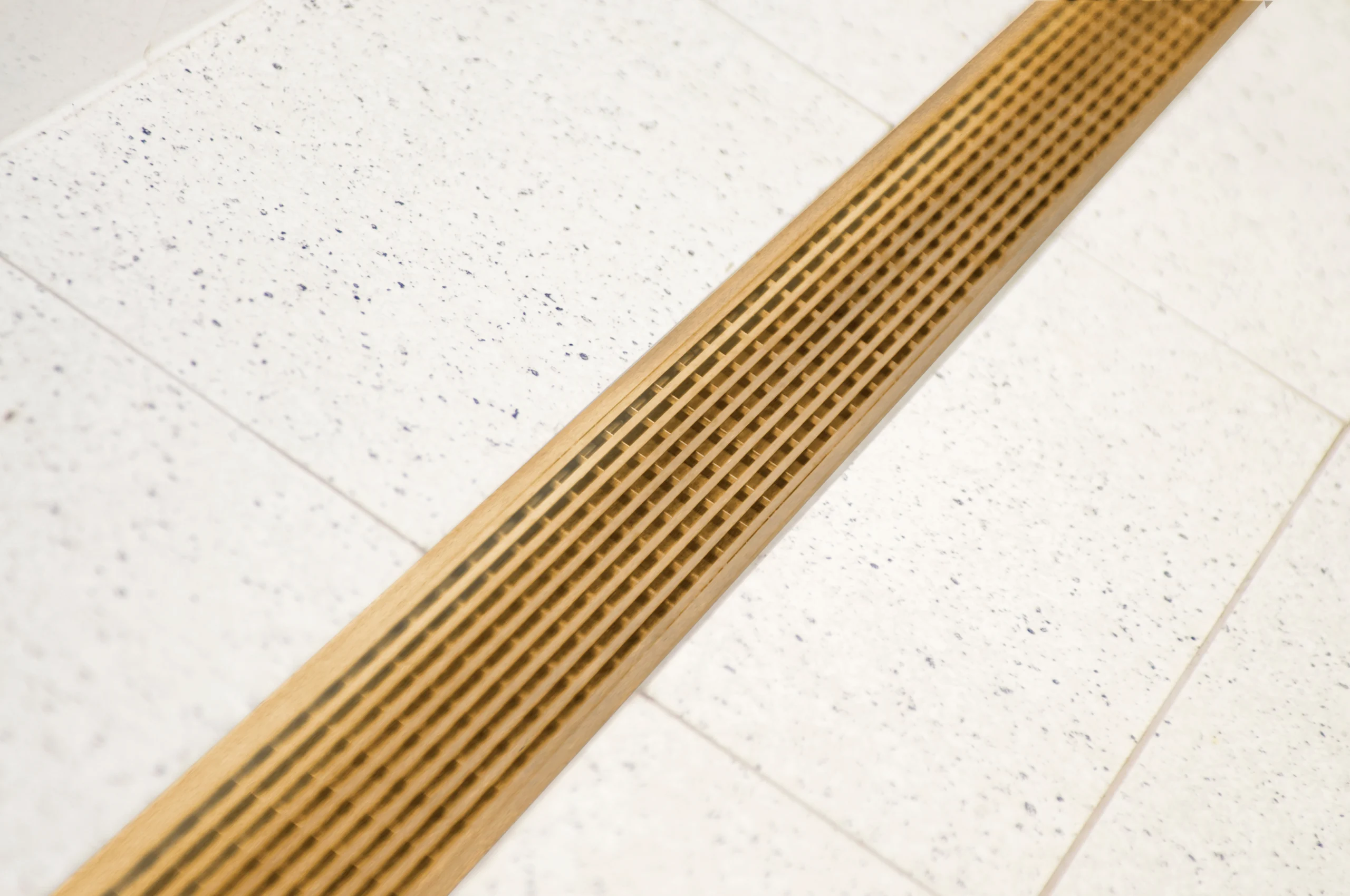

Unlacquered Brass: Living Finish
“Living finishes are untreated metal surfaces that naturally evolve over time. Unlike traditional finishes that remain unchanged, living finishes react with air, moisture, and everyday use—developing a unique patina that enhances the character and appearance of the metal.”
Developing a Natural Patina
- Color Evolution: Brass surfaces gradually shift from a bright golden tone to deeper shades of brown, bronze, or amber. In humid or coastal environments, the metal may develop subtle green or blue tones (verdigris) as part of the natural oxidation process.
- Organic Texture: As the finish ages, the surface develops a slightly varied, organic texture that adds depth, richness, and architectural character to the material.
Living finishes are valued in luxury residential and hospitality design for their ability to create a one-of-a-kind appearance that continues to evolve with time and environment.

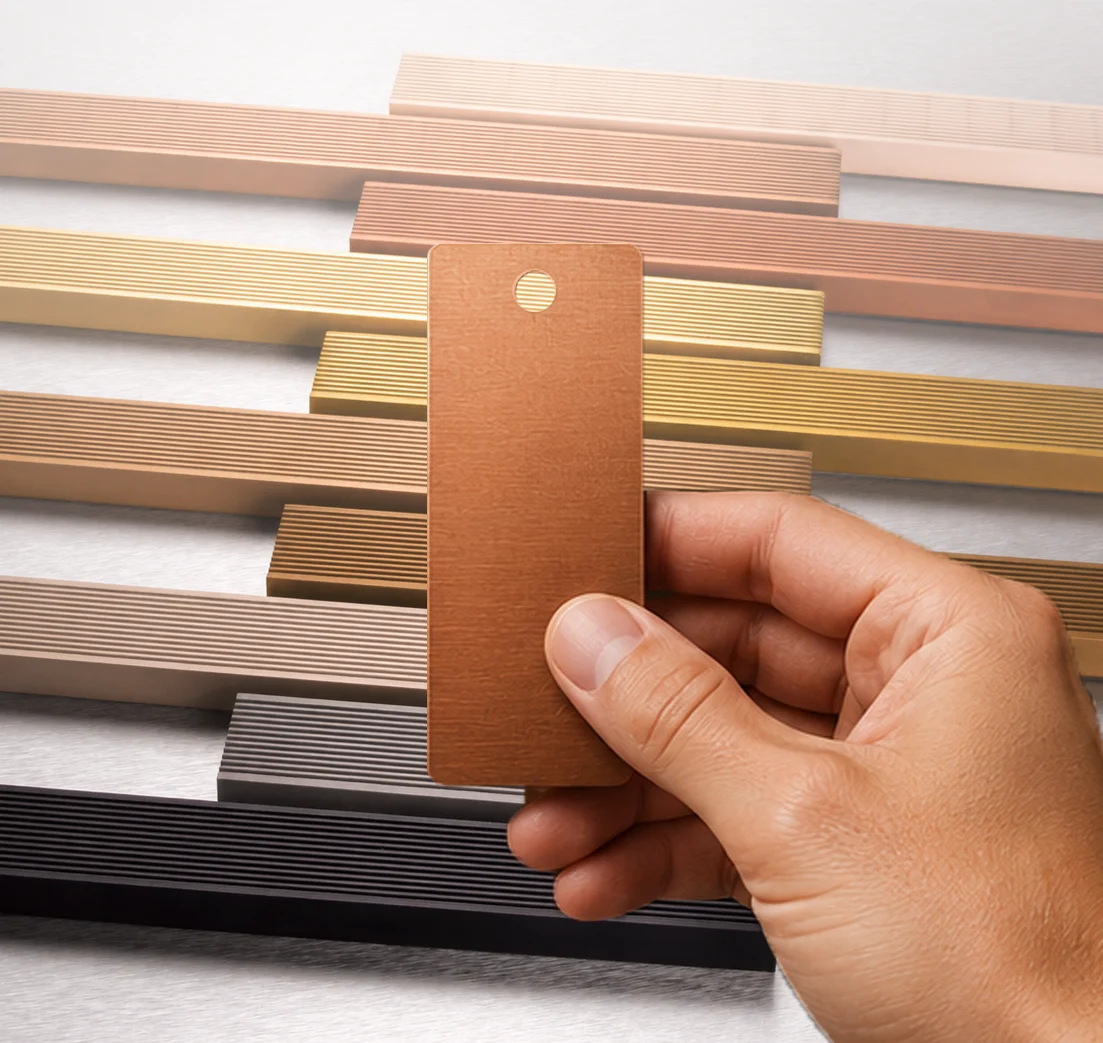

Custom Color Matching
Infinity Drain offers custom finish and color matching to coordinate with fixtures, hardware, and architectural design elements across residential and commercial bathroom projects. Custom finishes ensure that linear drains, center drains, and specialty drainage products integrate seamlessly with the overall design aesthetic.
Color Matching Options
- Pantone Color Match: Specify a Pantone color code and desired gloss level (example: PANTONE Red 032 C – High Gloss).
- Sample Match: Provide a physical sample. Infinity Drain will create a custom finish sample for review and approval before production.
For custom finish requests, quotations, and lead times, contact:
Gallery
Stainless Steel Shower Base
- Lifetime guarantee against waterproofing failure.
- 304L 16 Gauge Stainless Steel.
- Ability to install and flood test same day.
- Ensures exact wall-to-wall and flush against the wall installation.
- Available with curb or barrier-free (curbless).
- Includes integrated drain and decorative grate
- Drains are available in multiple styles and finishes.

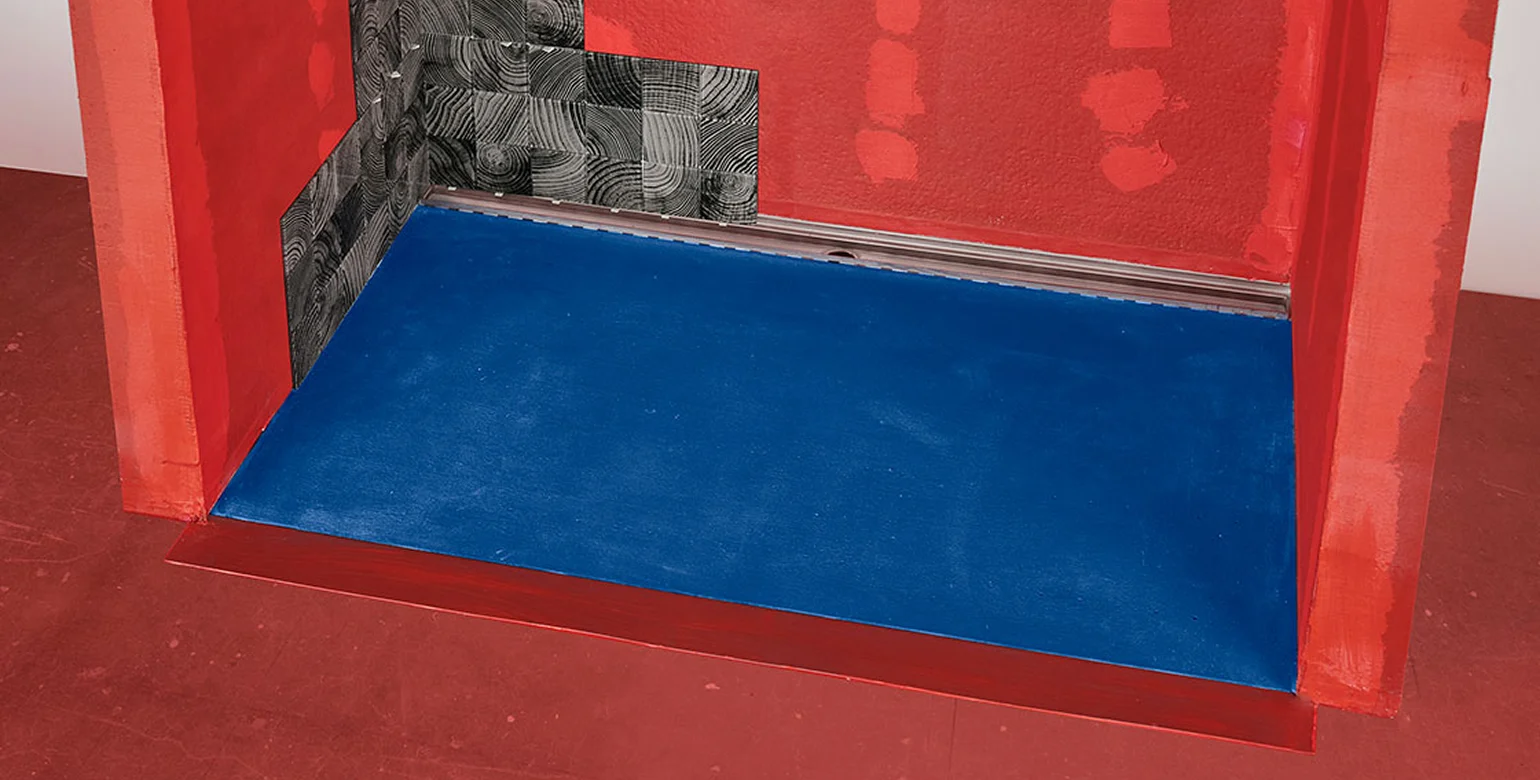

Install Process

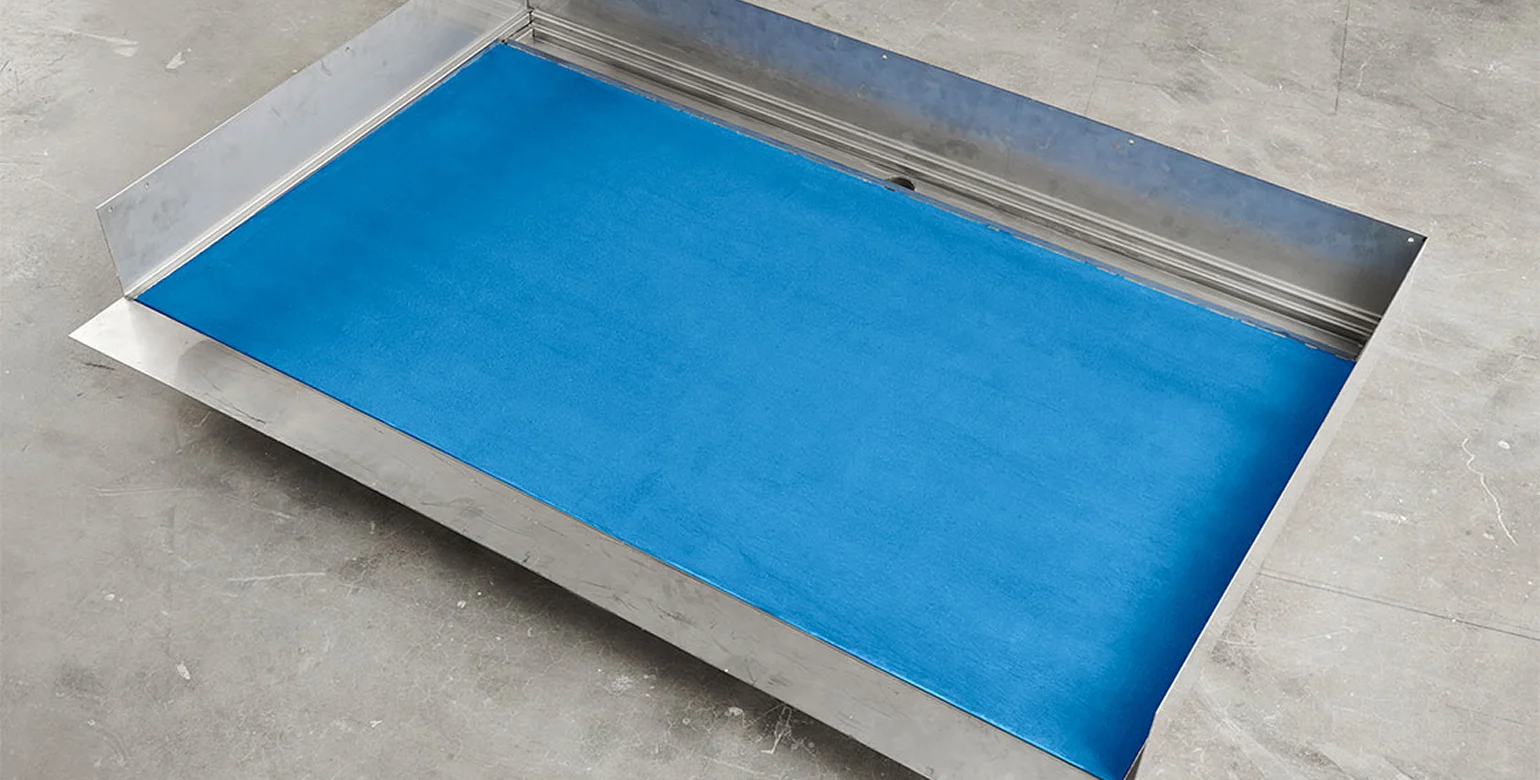

Arrives factory flood tested with a Lifetime Guarantee. The base is ready to install and features an integral drain, pre-sloped floor, and is coated with surface primer for tile installation.

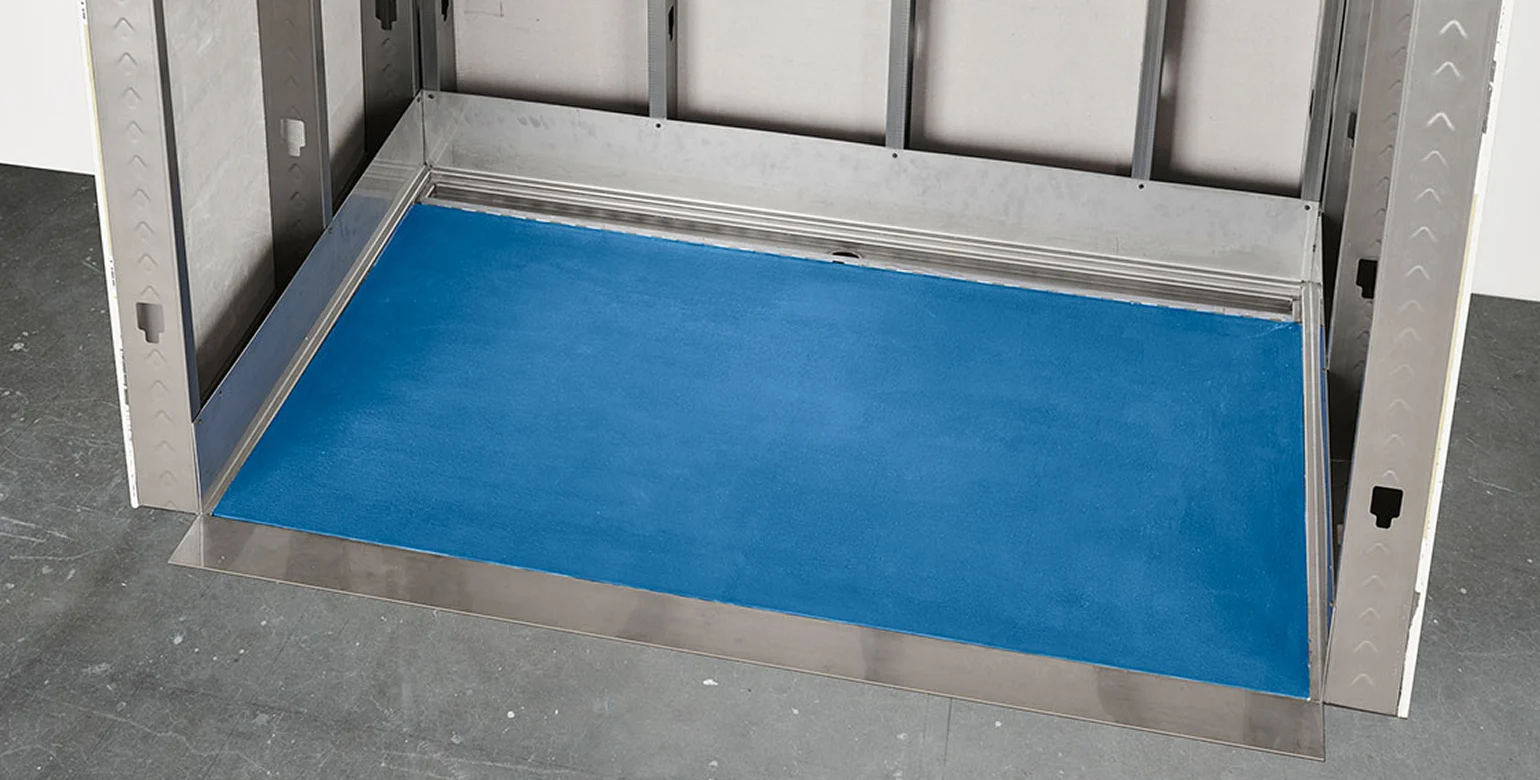

The base is adhered to the subfloor, leveled and attached to the plumbing. Framing is completed around the shower base or the shower base is placed into a preexisting framed space then secured directly to the framing.

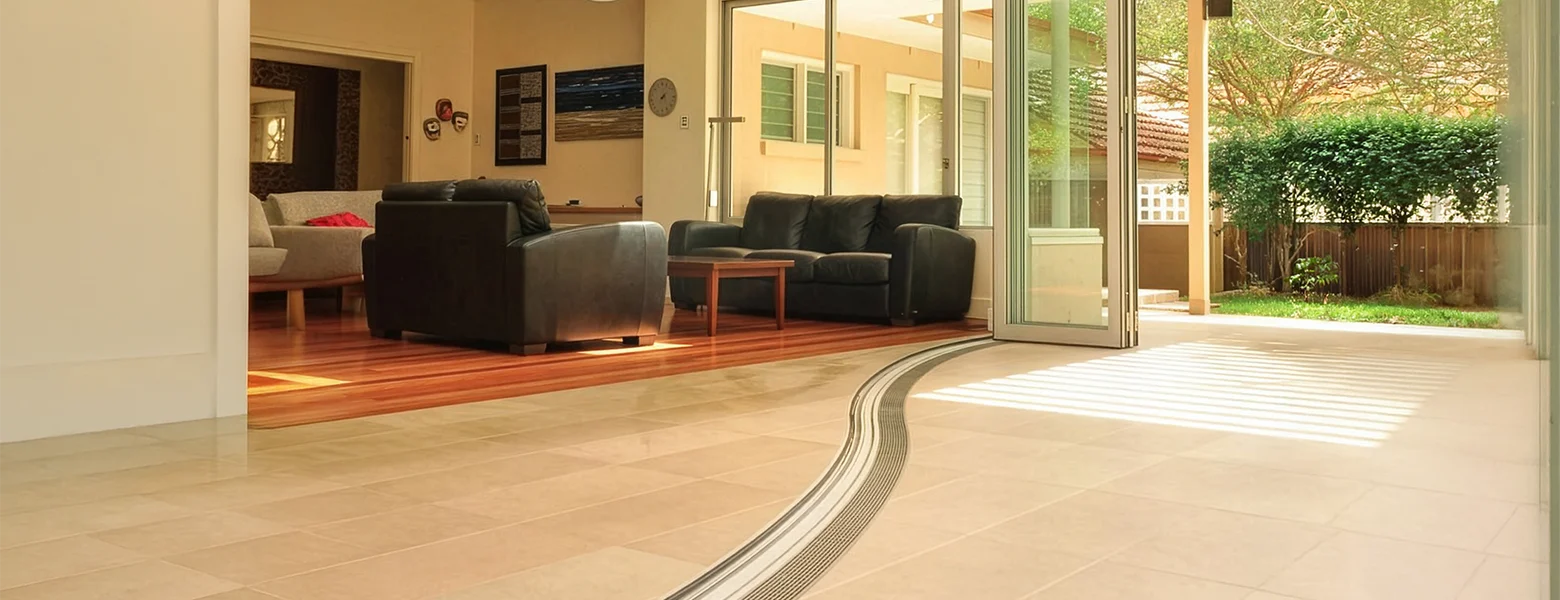

Many commercial and residential building design projects incorporate very desirable connections between indoor and outdoor spaces.
