Specifications

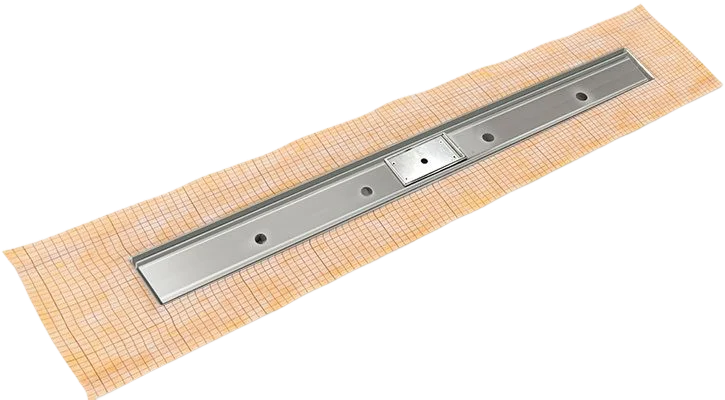

Fixed Flange with Schluter®-KERDI: Pre-pitched channel with set length with center outlet location
Waterproofing: Liquid membrane, Fabric sheet
18 Gauge, 304L stainless steel slot, 16 Gauge 304L SS tile insert clean out with stainless steel channel
Finished width: 3/8″, Min. height above subfloor: 1-3/4″
Capacity: 9 gallons per minute

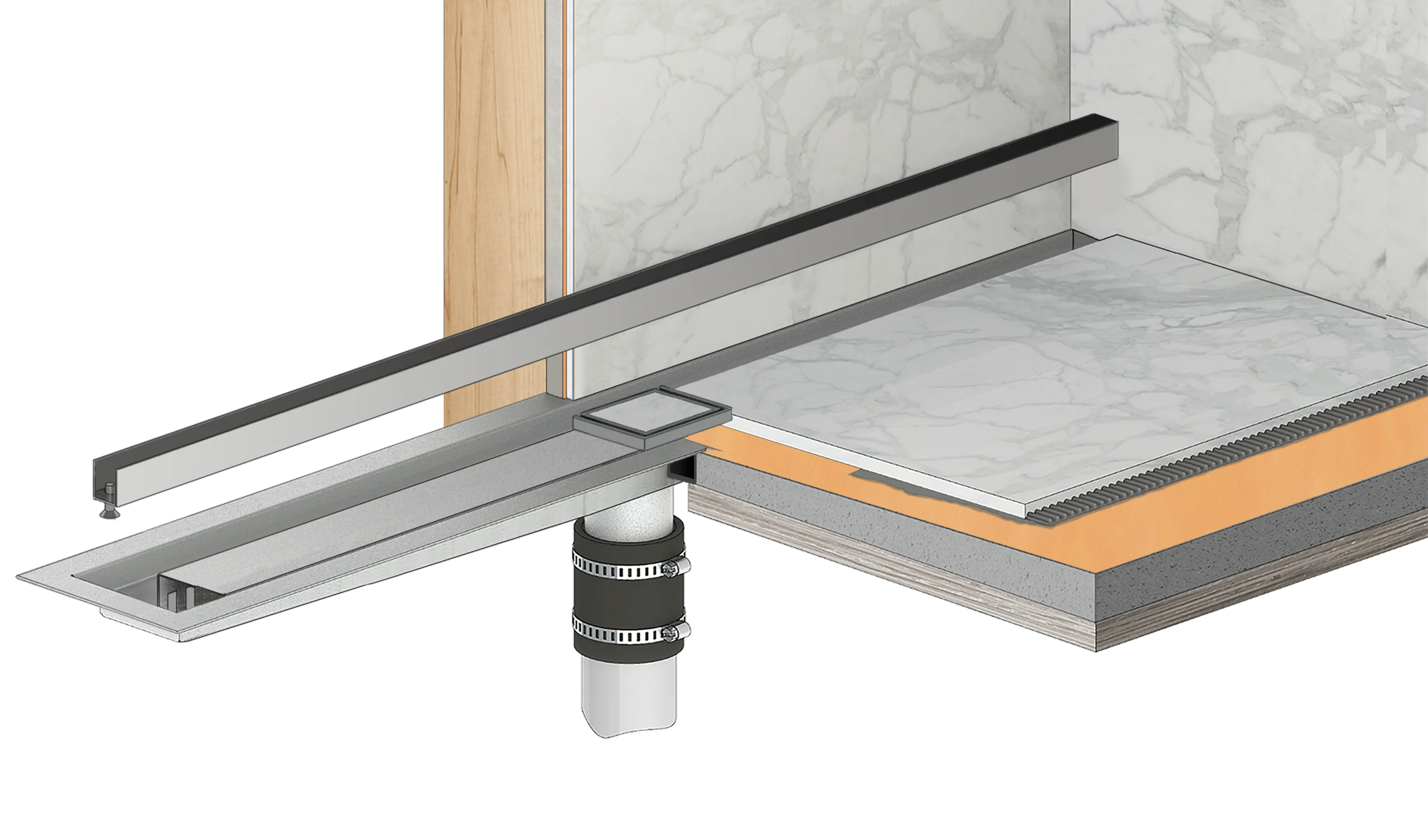

No-hub connection to waste line with rubber coupling (not included)
Specialty channel installation options available FCB 65, FCH 65
FCSST 24: (1) 24″ Complete Kit
FCSST 32: (1) 32″ Complete Kit
FCSST 36: (1) 36″ Complete Kit
FCSST 42: (1) 42″ Complete Kit
FCSST 48: (1) 48″ Complete Kit
FCSST 60: (1) 60″ Complete Kit
Satin Stainless — SS
Polished Stainless — PS
Satin Bronze — SB
Oil Rubbed Bronze – ORB
Matte Black — BK
Matte White — MW
Gunmetal — GM
Satin Champagne — SC
Polished Gold — PG
Polished Brass — PB
Satin Brass — SR
Hair Maintenance
All of our drains include a complimentary Hair Maintenance kit
This kit includes:
- Hair Basket
- Lift-out key
- User Guide
- Storage Pouch
