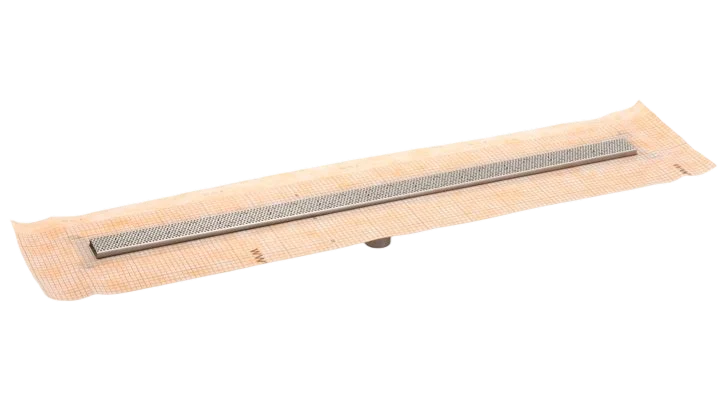

FCSGR 65

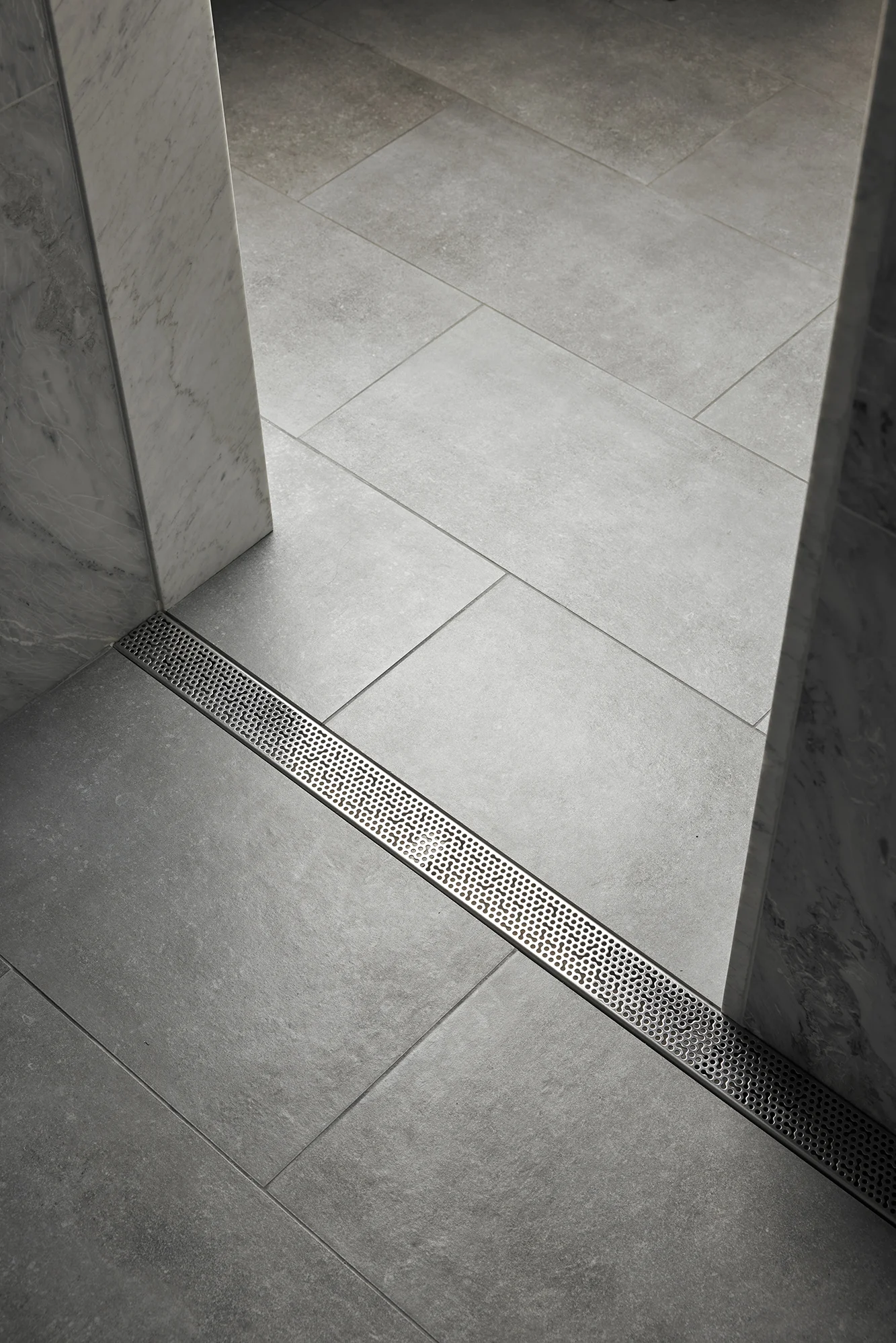

Adhesion Stainless Steel Grate Style

Fixed Flange: Pre-pitched channel with set length with center outlet location

Factory applied Schluter° Kerdi Membrane

16 gauge, 304L stainless steel perforated grate with stainless steel channel

Finished width: 2-1/2″, Min. height above subfloor*: 13/16″

Capacity: 9 gallons per minute

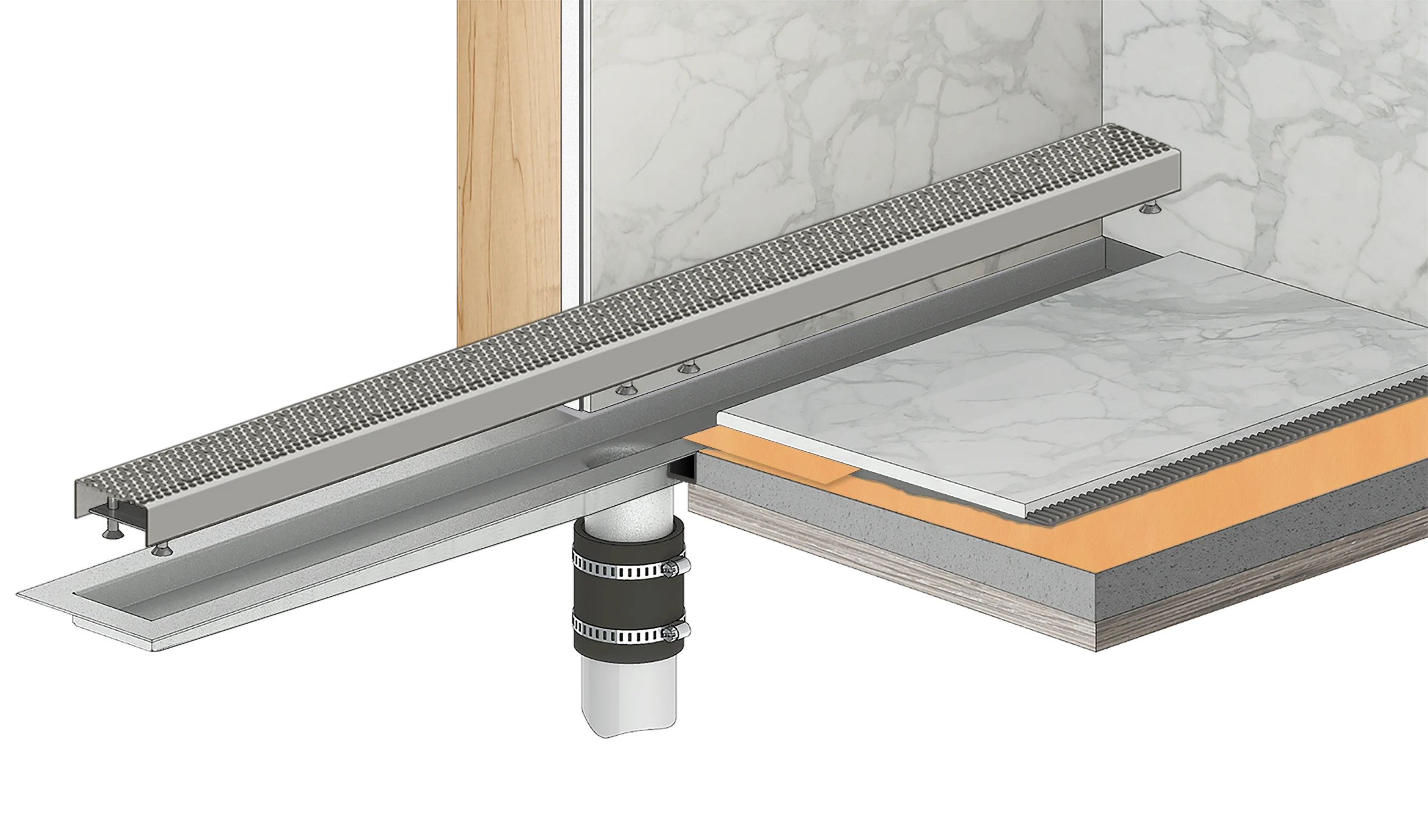

No-hub connection to waste line with rubber coupling (not included)

Recess channel into subfloor with placement brackets ST 65

FCSGR 6524: (1) 24″ Complete Kit

FCSGR 6532: (1) 32″ Complete Kit

FCSGR 6536: (1) 36″ Complete Kit

FCSGR 6542: (1) 42″ Complete Kit

FCSGR 6548: (1) 48″ Complete Kit

FCSGR 6560: (1) 60″ Complete Kit

Satin Stainless — SS

Polished Stainless — PS

Satin Bronze — SB

Oil Rubbed Bronze – ORB

Matte Black — BK

Matte White — MW

Gunmetal — GM

Satin Champagne — SC

Polished Gold — PG

Polished Brass — PB

Satin Brass — SR

• FCSGR 65 Submittal

• FF – Installation Instructions

• FCSGR 65 DXF CAD FILE

FT Installation
Liquid / Fabric Waterproofing
