S-GRAS 99

Adhesion Stainless Steel Grate Style

Low Profile 1″ Height

Site Sizable: Modify length and locate outlet placement on site

Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass

16 gauge, 304 stainless steel perforated top grate with stainless steel channel

Overall width: 2-7/8″, Min. height above waterproofing: 1-1/16″

Capacity: 21 gallons per minute per outlet. Additional outlets may be added to increase flow rate.

3″ clamp down floor drain with 4″ throat (strainer size) included in complete kit

S-GRAS 9936: 36″ Complete Kit

S-GRAS 9948: 48″ Complete Kit

S-GRAS 9960: 60″ Complete Kit

S-GRAS 9972: 72″ Complete Kit

S-GRAS 9996: 96″ Complete Kit

Satin Stainless — SS

Polished Stainless — PS

Satin Bronze — SB

Oil Rubbed Bronze – ORB

Matte Black — BK

Matte White — MW

Gunmetal — GM

Satin Champagne — SC

Polished Gold — PG

Polished Brass — PB

Satin Brass — SR

• S-GRAS 99 Submittal

• Site Sizable – Stainless Steel – Installation Instructions

• S-GRAS 99 DXF CAD FILE

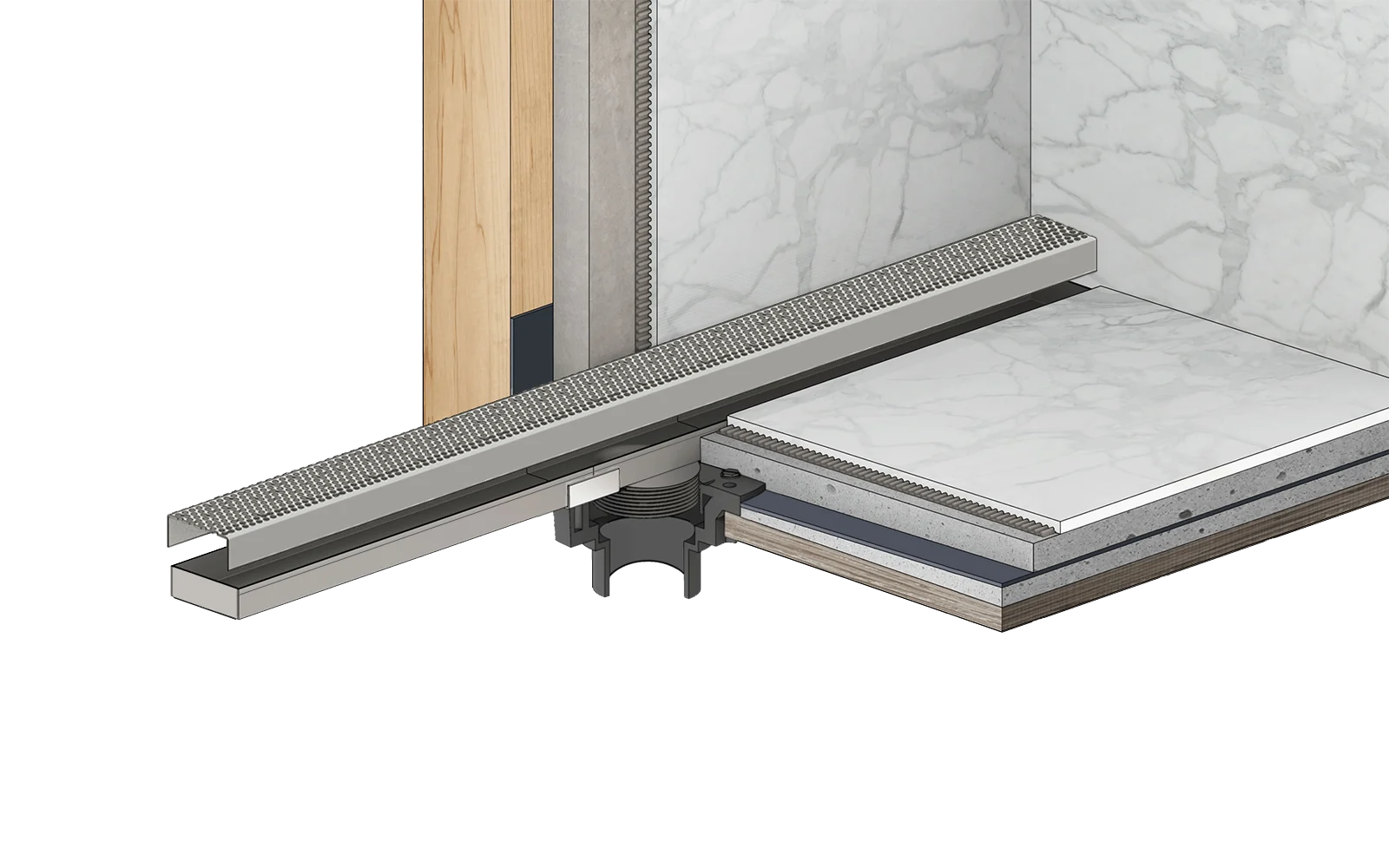

S Installation – Standard Waterproofing
Standard Wall Conditions
