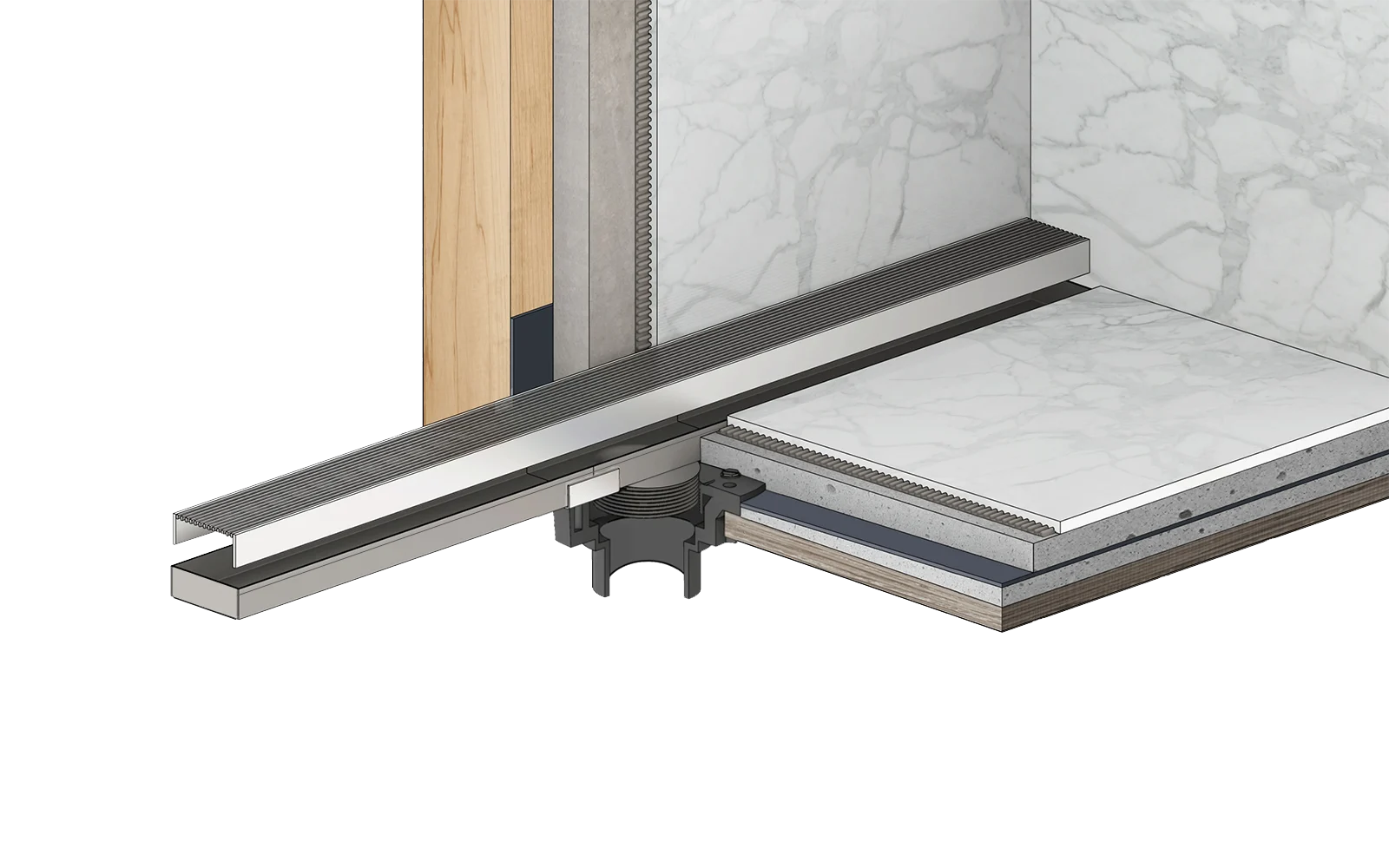

S-AS 99

Site Sizable: Modify length and locate outlet placement on site

Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
12 gauge, 316 stainless steel wedge wire top grate with stainless steel channel

Overall width: 2-15/16″, Min. height above waterproofing: 1-13/16″

Capacity: 21 gallons per minute per outlet. Additional outlets may be added to increase flow rate.

3″ clamp down floor drain with 4″ throat (strainer size) included in complete kit

S-AS 9936: 36″ Complete Kit with clamp down drain body

S-AS 9948: 48″ Complete Kit with clamp down drain body

S-AS 9960: 60″ Complete Kit with clamp down drain body

S-AS 9972: 72″ Complete Kit with clamp down drain body

S-AS 9996: 96″ Complete Kit with clamp down drain body

Satin Stainless — SS

Polished Stainless — PS

Satin Bronze — SB

Oil Rubbed Bronze – ORB

Matte Black — BK

Matte White — MW

Gunmetal — GM

Satin Champagne — SC

Polished Gold — PG

Polished Brass — PB

Satin Brass — SR

• S-AS 99 Submittal

• Site Sizable – Stainless Steel – Installation Instructions

• S-AS 99 DXF CAD FILE

S Installation – Standard Waterproofing
Standard Wall Conditions
