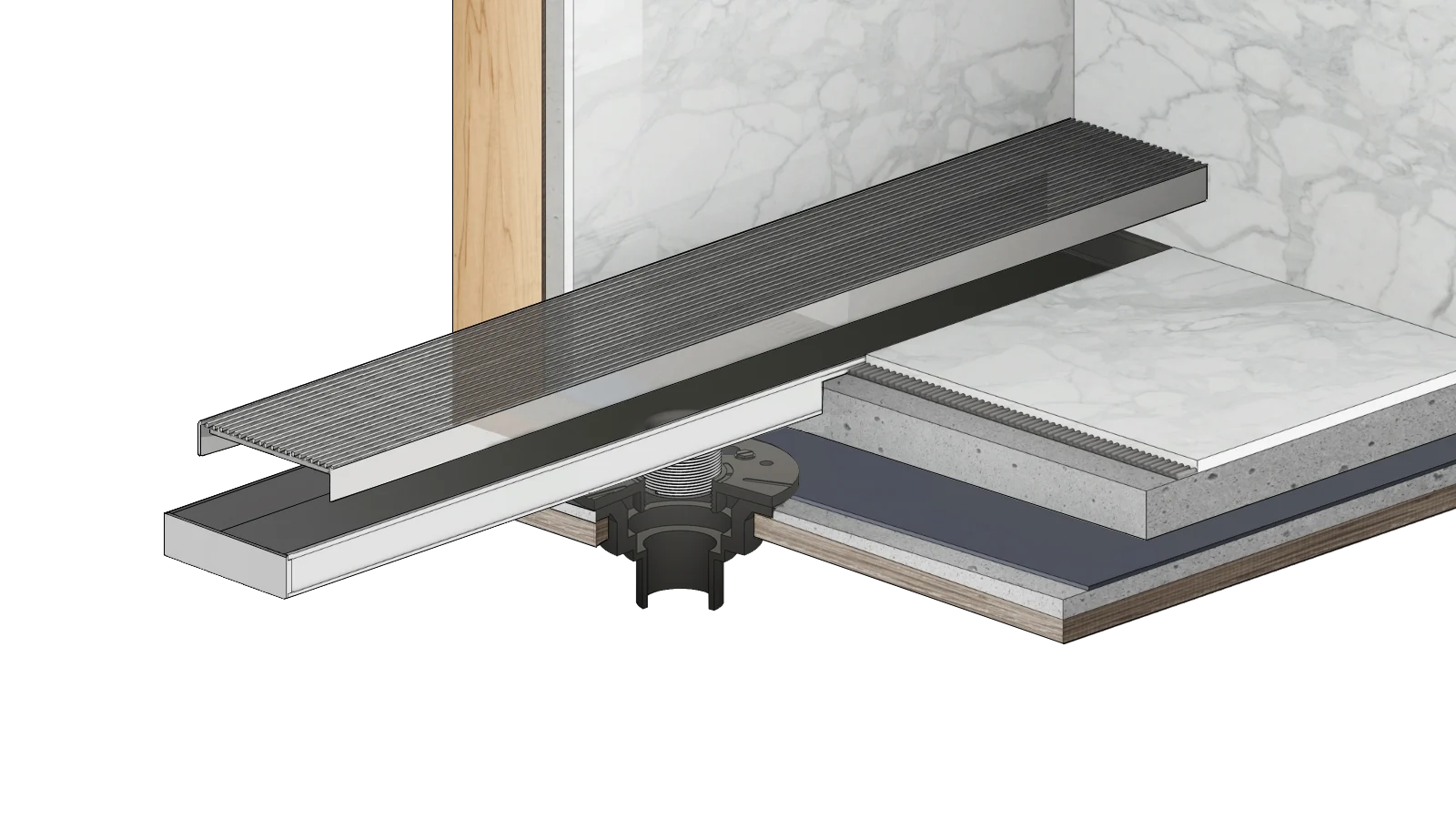

S-AG 100

Site Sizable: Modify length and locate outlet placement on site

Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass

12 gauge, 316 stainless steel wedge wire top grate with PVC channel

Overall width: 4-1/4″, Min. height above subfloor*: 1-1/4″

Capacity: 9 gallons per minute per outlet. Additional outlets may be added to increase flow rate.

Requires 2″ clamp down floor drain with 2″ throat (strainer size). Not included in complete kit.

S-AG 10036: 36″

Complete Kit
S-AG 10048: 48″

Complete Kit
S-AG 10060: 60″

Complete Kit
S-AG 10072: 72″

Complete Kit
S-AG 10096: 96″

Complete Kit

Satin Stainless — SS

Polished Stainless — PS

Satin Bronze — SB

Oil Rubbed Bronze – ORB

Matte Black — BK

Matte White — MW

Gunmetal — GM

Satin Champagne — SC

Polished Gold — PG

Polished Brass — PB

Satin Brass — SR

• S-AG 100 Submittal

• Site Sizable – PVC – Installation Instructions

• S-AG 100 DXF CAD FILE

S Installation – Standard Waterproofing
Standard Wall Conditions
