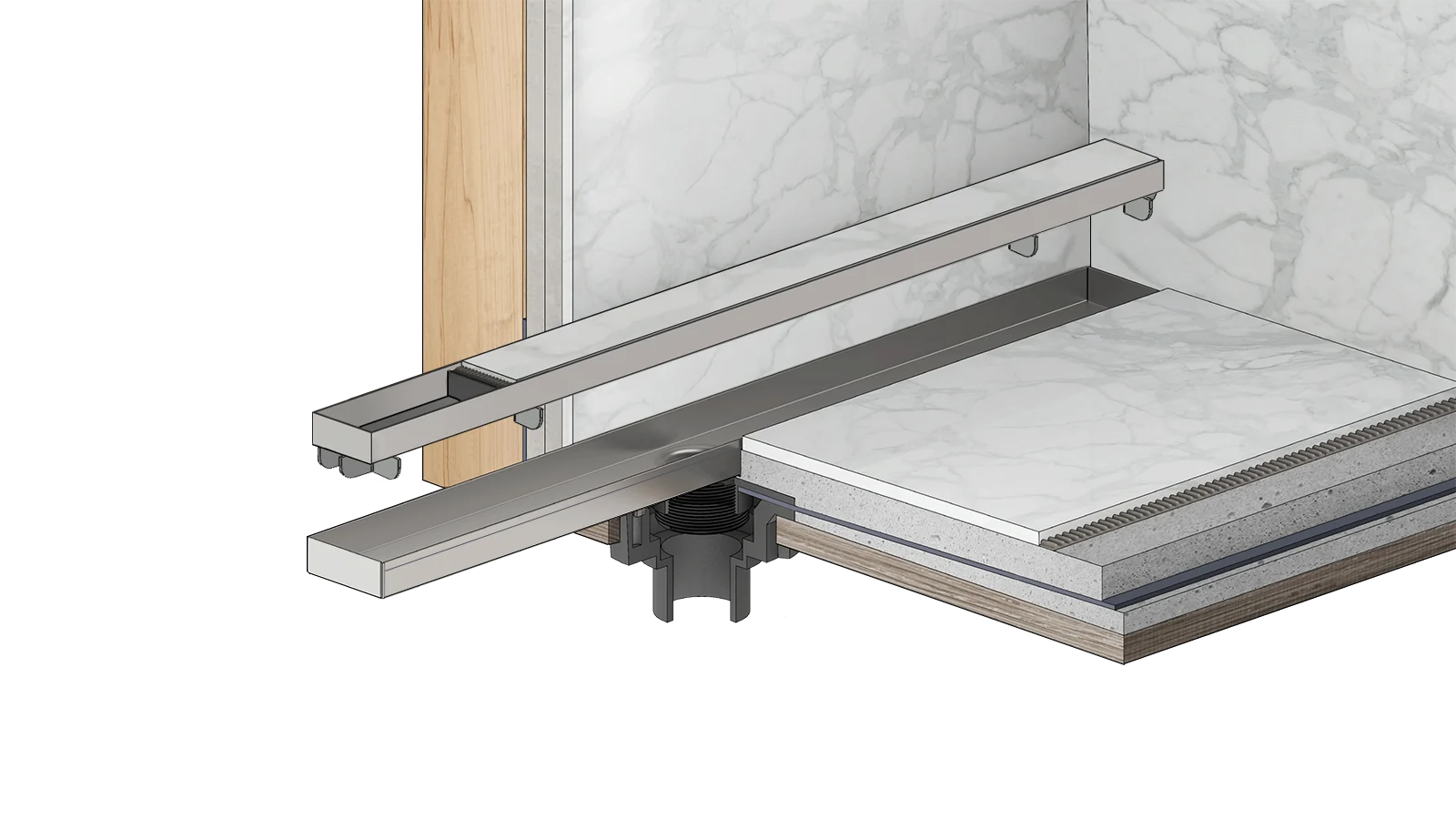

FXTIF 65

Fixed Length: Pre-pitched channel with set length with center outlet location

Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass

12 gauge, 304 stainless steel tile-in top grate with stainless steel channel

Accepts flooring material up to 3/4″ in thickness

Overall width: 2-7/8″, Min. height above waterproofing: 1-11/16″

Capacity: 9 gallons per minute

Requires 2″ clamp down floor drain with 2″ throat (strainer size). Not included in complete kit.

FXTIF 6524: 24″ Complete Kit

FXTIF 6532: 32″ Complete Kit

FXTIF 6536: 36″ Complete Kit

FXTIF 6542: 42″ Complete Kit

FXTIF 6548: 48″ Complete Kit

FXTIF 6560: 60″ Complete Kit

Satin Stainless — SS

Polished Stainless — PS

Satin Bronze — SB

Oil Rubbed Bronze – ORB

Matte Black — BK

Matte White — MW

Gunmetal — GM

Satin Champagne — SC

Polished Gold — PG

Polished Brass — PB

Satin Brass — SR

• FXTIF 65 Submittal

• FX – Installation Instructions

• FXTIF 65 DXF CAD File

FX Installation – Standard Waterproofing
