FXSD 65

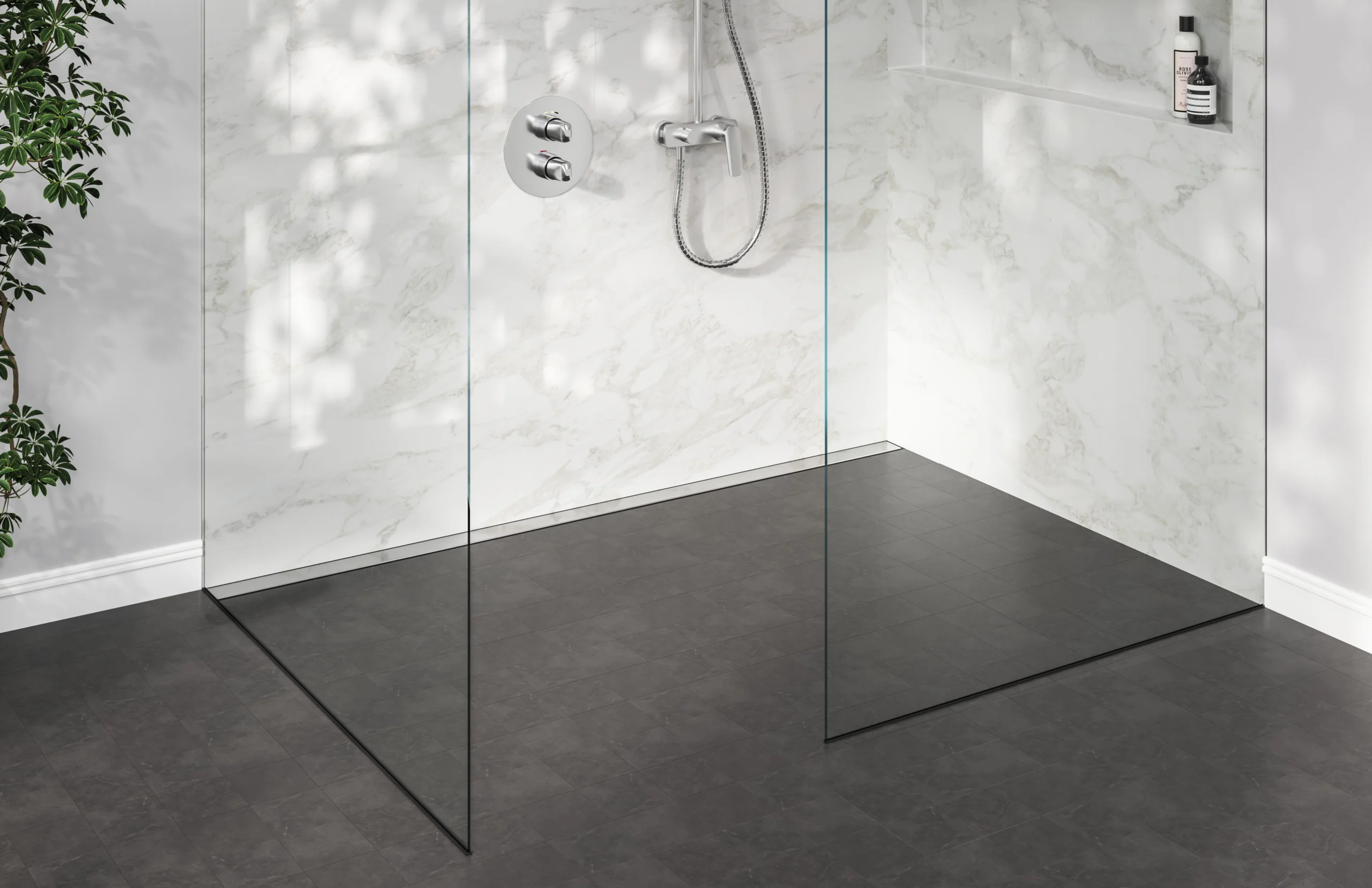

16 gauge, 304 stainless steel Solid grate

Fixed Length: Pre-pitched channel with set length with center outlet location

Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass

Overall width: 2-13/16″ Min. height above subfloor*: 1-5/16″

Capacity: 9 gallons per minute

Requires 2″ clamp down floor drain with 2″ throat (strainer size). Not included in complete kit.

FXSD 6524: 24″ Complete Kit

FXSD 6532: 32″ Complete Kit

FXSD 6536: 36″ Complete Kit

FXSD 6542: 42″ Complete Kit

FXSD 6548: 48″ Complete Kit

FXSD 6560: 60″ Complete Kit

Satin Stainless — SS

Polished Stainless — PS

Satin Bronze — SB

Oil Rubbed Bronze – ORB

Matte Black — BK

Matte White — MW

Gunmetal — GM

Satin Champagne — SC

Polished Gold — PG

Polished Brass — PB

Satin Brass — SR

• FXSD 65 Submittal

• FX – Installation Instructions

• FXSD 65 DXF CAD FILE

FX Installation – Standard Waterproofing
