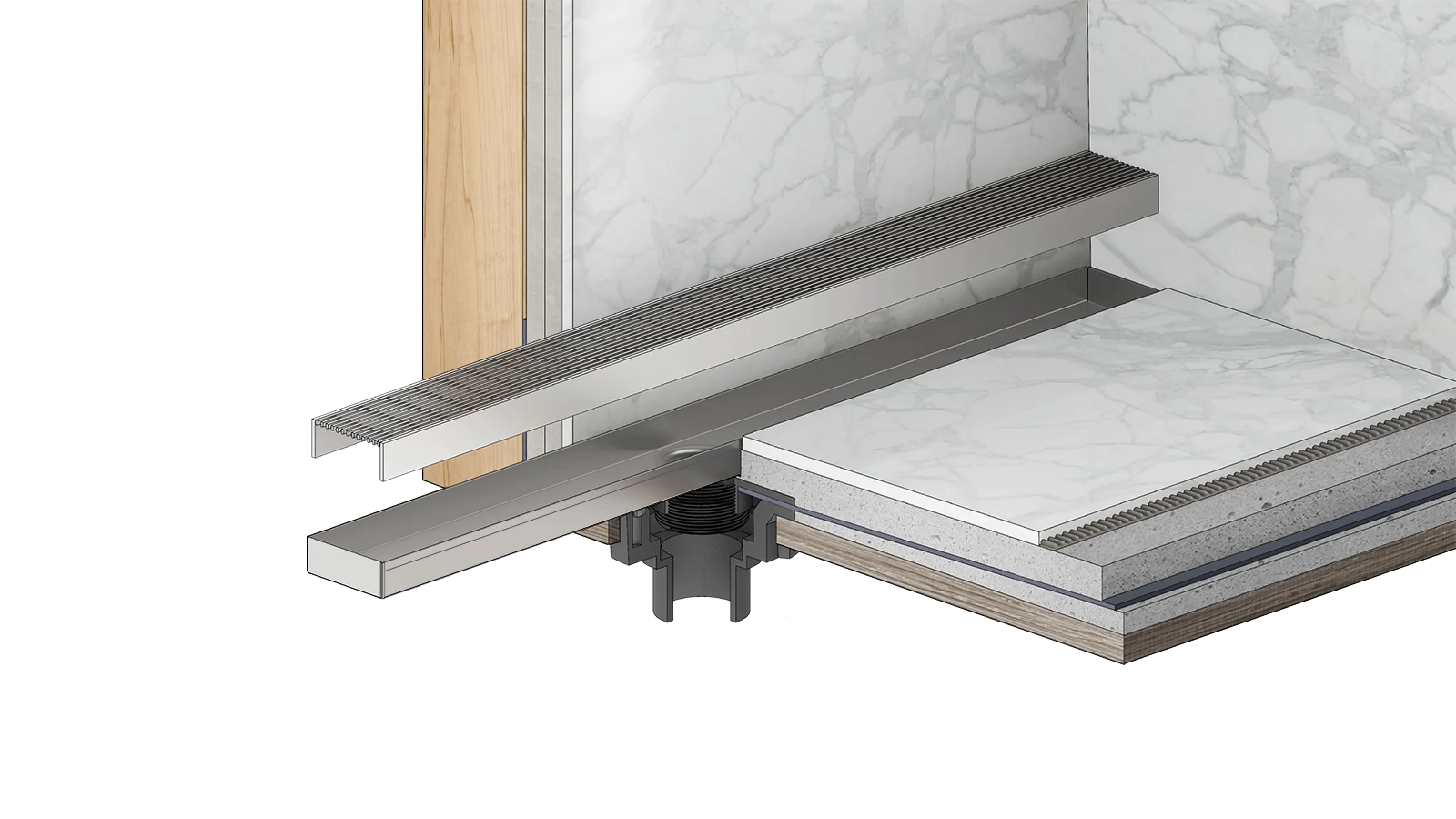

FXAS 65

Fixed Length: Pre-pitched channel with set length with center outlet location

Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass

12 gauge, 316 stainless steel wedge wire top grate with stainless steel channel

Overall width: 2-13/16″, Min. height above waterproofing: 1-5/16″

Capacity: 9 gallons per minute

Requires 2″ clamp down floor drain with 2″ throat (strainer size). Not included in complete kit.

FXAS 6524: (1) 24″ Complete Kit

FXAS 6532: (1) 32″ Complete Kit

FXAS 6536: (1) 36″ Complete Kit

FXAS 6542: (1) 42″ Complete Kit

FXAS 6548: (1) 48″ Complete Kit

FXAS 6560: (1) 60″ Complete Kit

Satin Stainless — SS

Polished Stainless — PS

Satin Bronze — SB

Oil Rubbed Bronze – ORB

Matte Black — BK

Ten day lead time

Include:
Matte White, Gunmetal, Satin Champagne, Polished Gold, Polished Brass and new Satin Brass.

• FXAS 65 Submittal

• Installation Instructions

• FXAS 65 DXF CAD FILE

FX Installation – Standard Waterproofing
