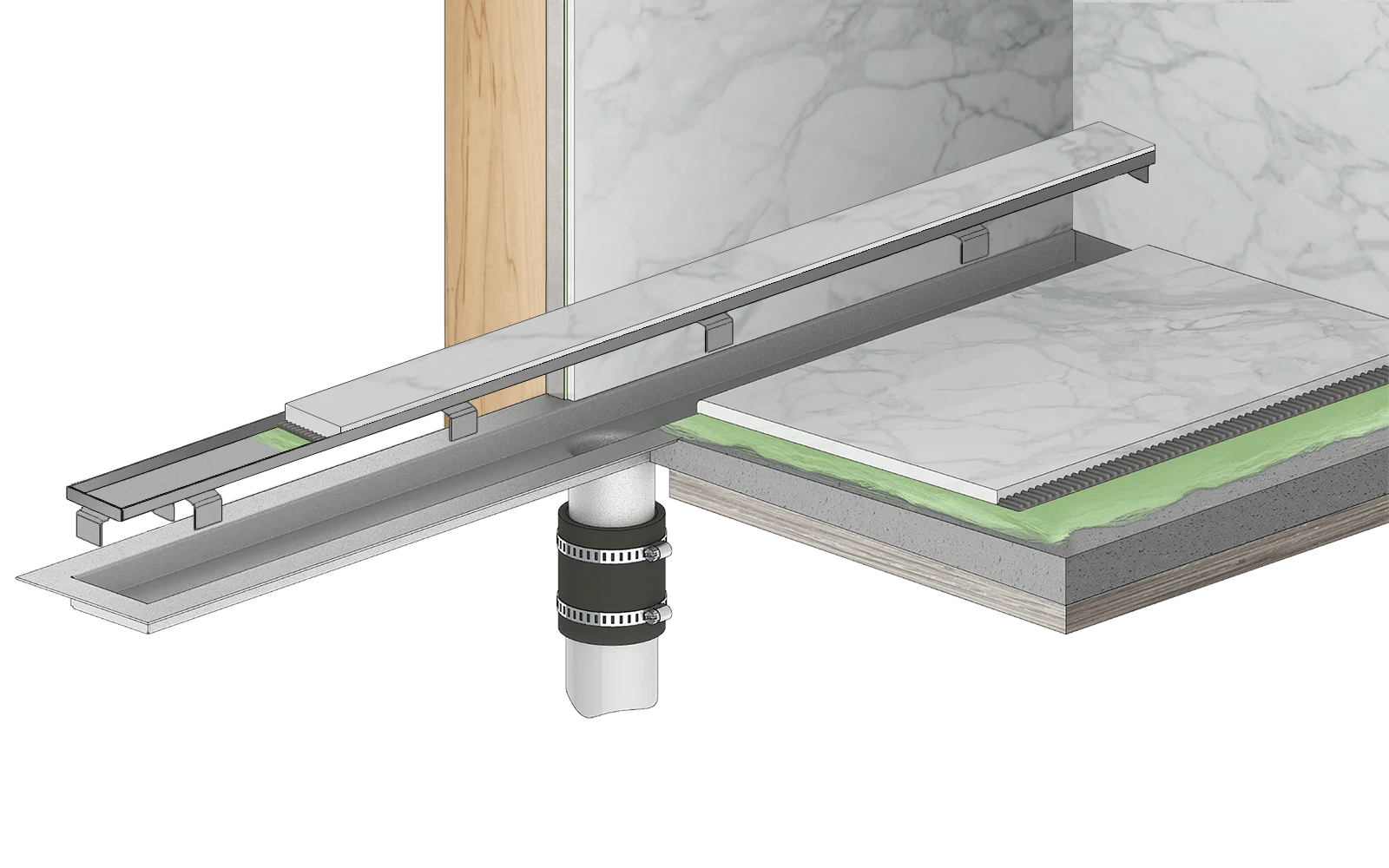

FFTIF 65

Fixed Flange: Pre-pitched channel with set length with center outlet location

Waterproofing: Liquid membrane, Fabric sheet
16 gauge, 304 stainless steel tile-in top grate with stainless steel channel

Accepts flooring material up to 3/8″ material

Finished width: 2-1/2″, Min. height above subfloor*: 3/8″

Capacity: 9 gallons per minute

No-hub connection to waste line with rubber coupling (not included)

Recess channel into subfloor with placement brackets ST 65

Specialty channel installation options available FCB 65, FCH 65

FFTIF 6524: 24″ Complete Kit

FFTIF 6532: 32″ Complete Kit

FFTIF 6536: 36″ Complete Kit

FFTIF 6542: 42″ Complete Kit

FFTIF 6548: 48″ Complete Kit

FFTIF 6560: 60″ Complete Kit

Satin Stainless — SS

Polished Stainless — PS

Satin Bronze — SB

Oil Rubbed Bronze – ORB

Matte Black — BK

Matte White — MW

Gunmetal — GM

Satin Champagne — SC

Polished Gold — PG

Polished Brass — PB

Satin Brass — SR

• FFTIF 65 Submittal

• FF – Installation Instructions

FT Installation
Liquid / Fabric Waterproofing
