FFTAF 65

Fixed Flange: Pre-pitched channel with set length with center outlet location

Waterproofing: Liquid membrane, Fabric sheet

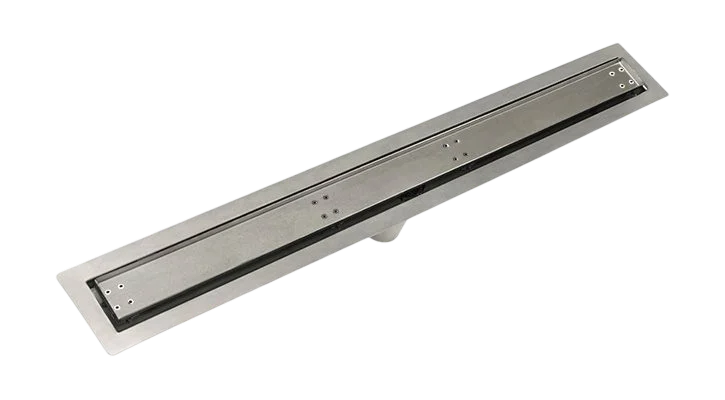

16 gauge, 304 stainless steel tile-in top grate with stainless steel channel

Accepts flooring material up to 3/4″ material

Finished width: 2-1/2″, Min. height above subfloor*: 15/16″

Capacity: 9 gallons per minute

No-hub connection to waste line with rubber coupling (not included)

Recess channel into subfloor with placement brackets ST 65

Specialty channel installation options available FCB 65, FCH 65

FFTAF 6524: (1) 24″ Complete Kit

FFTAF 6536: (1) 36″ Complete Kit

FFTAF 6542: (1) 42″ Complete Kit

FFTAF 6548: (1) 48″ Complete Kit

FFTAF 6560: (1) 60″ Complete Kit

Satin Stainless — SS

Polished Stainless — PS

Satin Bronze — SB

Oil Rubbed Bronze – ORB

Matte Black — BK

Matte White — MW

Gunmetal — GM

Satin Champagne — SC

Polished Gold — PG

Polished Brass — PB

Satin Brass — SR

• FFTAF 65 Submittal

• FF – Installation Instructions

• FFTAF 65 DXF CAD File

FF Installation
Liquid / Fabric Waterproofing
