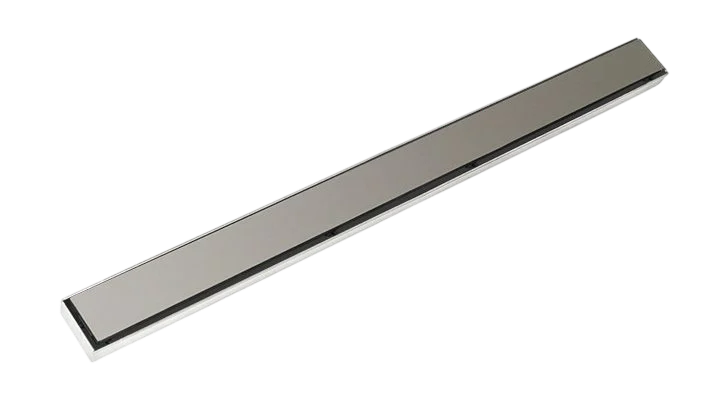

FFSD 65

16 gauge, 304 stainless steel Solid grate

Fixed Flange: Pre-pitched channel with set length with center outlet location

Waterproofing: Liquid membrane, Fabric sheet

Finished width: 2-1/2″, Min. height above subfloor*: 3/8″

Capacity: 9 gallons per minute

No-hub connection to waste line with rubber coupling (not included)

Specialty channel installation options available FCB 65, FCH 65

FFSD 6524: (1) 24″ Complete Kit

FFSD 6532: (1) 32″ Complete Kit

FFSD 6536: (1) 36″ Complete Kit

FFSD 6542: (1) 42″ Complete Kit

FFSD 6548: (1) 48″ Complete Kit

FFSD 6560: (1) 60″ Complete Kit

Satin Stainless — SS

Polished Stainless — PS

Satin Bronze — SB

Oil Rubbed Bronze – ORB

Matte Black — BK

Matte White — MW

Gunmetal — GM

Satin Champagne — SC

Polished Gold — PG

Polished Brass — PB

Satin Brass — SR

• FFSD 65 Submittal

• FF – Installation Instructions

• FFSD 65 DXF CAD FILE

FF Installation
Liquid / Fabric Waterproofing
